Omnis Studio IDE Programming
Does anyone here have any experience with programmatically controlling the Omnis Studio IDE? I’m thinking things like
– Determine what Method Editors are open (including which library, class and method they are editing)
– Move and resize Method Editor, Studio Browser and design windows
– Read and modify other window state, like being in the foreground, etc.
I’ve discovered the Classes command group, which include ‘Modify Methods’ and ‘Close Design’ which are part the way there and are able to control IDE windows. Im also aware that through notation all of this can be accomplished for windows that you have created as part of your app, but I have been unable to find an equivalent for IDE windows. It’s very possible it all exists and I’ve just missed it.
Im currently working with Omnis Studio CE 11.1 on Windows 11, but I have access to the Omnis Professional trial if need be.
Thanks, from Matthew
-
6 Replies
-
There is a bunch of class notation that can help with this to some extend, i.e. to modify a method you can $classes.myclass.$methods.//$method_name//.$modify(2) which wold open the method editor at line 2 of that method. Any notation that begins with $classes or $libs.mylib.$classes will access class notation and $modify() is a method of the actual class or method within a class. Hope this helps
Regards,
MIchael
-
Sorry, did not read thoroughly. Don’t know much about controlling IDE windows except that preferences for these are stored in the configuration file. There are various sections to do with the IDE and method editor. May be worthwhile playing with those.
-
Hi Michael, thanks for the response.
I took a look through the IDE config files but nothing there is really offering the options Im looking for. Thanks for bringing up the ‘$modify()’ method too, it’s a more precise way of opening a method for editing.
Regards, Matthew
-
-
-
Hi Matthew,
I work with different environments, so saving named workspaces is on my wish list (https://www.omnis.net/community/forums/forum/discussion/saving-named-workspaces/)

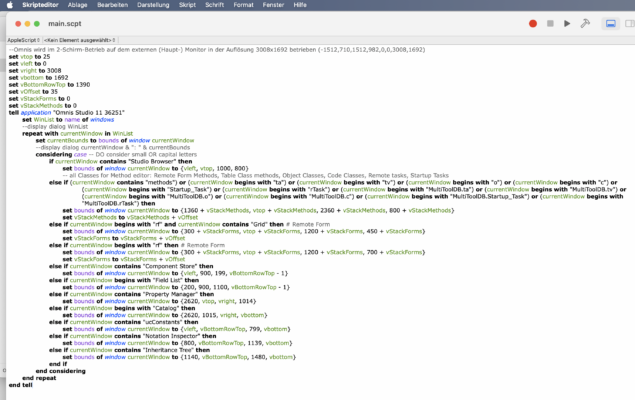

In the meantime, I helped myself with an AppleScript that helps me to arrange windows for different settings like ‘mobile’ or ‘mobile + external screen’.
As you are on MS Windows, maybe there is an equivalent automation shell?
Regards
Uwe
omnis.net
Saving named Workspaces - Omnis Forum
I am using my notebook both stand-alone and in multi-monitor-mode.  It would be great to be able save named workspaces, like 'on the road',…
-
Hi Uwe, thanks for replying.
Your solution is almost exactly what I was looking for, but it won’t work on Windows. The Omnis program on Windows opens as a single document application, with all the Browser, Method Editor and other windows opening as windows inside that application. I don’t believe I can control those windows with external scripting tools.
Regards, Matthew
-
-
<div>Hi Matthew,</div>

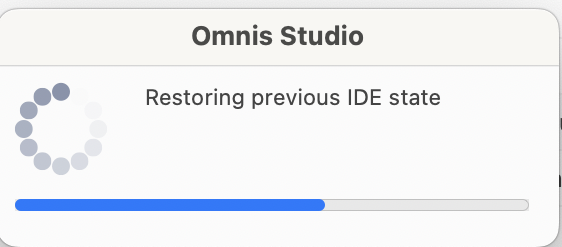

I suppose Omnis is working on it, but maybe not with the highest of priorities, When I open Omnis 11, I get a short & small dialog saying ‘restoring IDE’
And with Shift F3 you can store individual window settings – so it’s all there, just needs to be assembled to one ‘save workspace’ command. So vote my idea
https://www.omnis.net/community/forums/forum/discussion/saving-named-workspaces/up by one, then we may see it a bit earlier… 😉
Regards
Uwe
PS: I had this topic earlier with Omnis support, but then the only advice was to have 2 separate installations …
https://www.omnis.net/community/forums/forum/discussion/positioning-studio-ide-windows-by-code/
omnis.net
Saving named Workspaces - Omnis Forum
I am using my notebook both stand-alone and in multi-monitor-mode.  It would be great to be able save named workspaces, like 'on the road',…
