Chapter 11—HWND Reference

This chapter describes the public interface of the HWND module, which is the Omnis cross-platform window manager. This chapter includes a description of the Structures, Data types, and Defines required by some HWND functions, Style flags for the Omnis window, the Messages sent to a window’s message procedure, and HWND Functions.

The HWND

The HWND is a child window, the graphical container for an Omnis window control. It is split into two areas, the client area and the non-client area. The non-client area contains the border (there are a number of border styles available) and scrollbars of the window. The client area (the area which remains after subtracting the border and scrollbars) can be used to display the control’s interface. The client area can also contain further child windows which are part of the control’s interface, or are complete controls in themselves.

The Z-order

The Z-order is the order in which windows appear on the screen. When thinking in terms of a chain of sibling windows, or child windows belonging to the same parent window, the Z-order is like a deck of cards. The top most card can always be seen in its entirety, and how much can be seen of all remaining cards, depends on how they are laid out on the table. When thinking in terms of parent and child windows, the Z-order becomes more complex. Parent windows can be thought of as boxes with a rectangular opening in the lid, through which the child windows can be viewed. The size and location of the opening depends on the window’s coordinates. How much of a child can be seen through the opening depends on the child’s coordinates in relation to that opening. Child windows are always considered to be below their parent window in terms of Z-order, but are considered to be above all sibling windows of their parent if these sibling windows are positioned below that parent (just as if you were to stack a number of parent boxes containing child cards). Changing the parent of a child (see WNDsetParent) alters its position in the Z-order.

When enumerating windows (see WNDenumChildWindows) it is the Z-order which determines the order of the enumerated windows, their child windows, and the children’s children, and so on.

When system updates occur, windows are painted starting at the top of the Z-order.

HWND Components

Given that the client area of a window can contain any number of child windows, these child windows normally have a location and size within their parent window which is specified at the time they are created, and altered later on. If the parent window has been given scrollbars, the child window can be moved by scrolling the parent’s client area.

Child windows can also be created as specific components in a parent’s client area (in this case the parent should have no scrollbars). A component window has a fixed location within its parent, and usually only the width or height of a component can be specified, if at all. When the parent’s client area height or width changes, all components resize accordingly.

Any window can contain one of each component type. Any component in turn can contain a further full set of components. There is no specific limit to the number of nested windows or component windows. The following diagram shows all component types in their correct position.

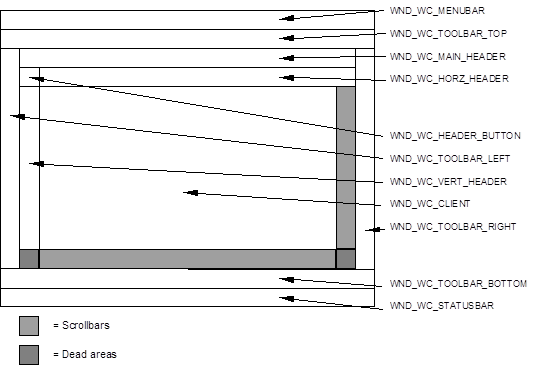

In this diagram only the client component is displayed with scrollbars, but any other component could have scrollbars, if appropriate.

Note: The names of the components bear no relationship to objects generally described by these names; a component’s name gives you an idea of its position in the window. For example, Menubar tells you that the component is at the top of the window where you would expect to find a menu bar.

The following is a listing of all the components and their special function.

Name Special function Sizeability
WND_WC_FRAME This is the default component ID of a window. A frame window has no special functionality. all
WND_WC_MENUBAR Width is dependent on parent’s width height
WND_WC_TOOLBAR_TOP Width is dependent on parent’s width height
WND_WC_TOOLBAR_LEFT Height is dependent on parent’s height minus the height of MENUBAR, TOOLBAR_TOP, TOOLBAR_BOTTOM and STATUSBAR components width
WND_WC_TOOLBAR_RIGHT Height is dependent on parent’s height minus the height of the MENUBAR, TOOLBAR_TOP, TOOLBAR_BOTTOM and STATUSBAR components width
WND_WC_TOOLBAR_BOTTOM Width is dependent on parent’s width height
WND_WC_STATUSBAR Width is dependent on parent’s width height
WND_WC_MAIN_HEADER Width is dependent on parent’s width minus the width of the left and right toolbar components height
WND_WC_HORZ_HEADER Width is dependent on parent’s width minus the width of the left toolbar, right toolbar, and vertical header components. This component’s horizontal scroll range and position is linked to that of the client component’s horizontal scroll range and position. When the client component is scrolled horizontally, this component receives a duplicate of all scroll messages. height
WND_WC_VERT_HEADER Height is dependent on parent’s height minus the height of the MENUBAR, TOOLBAR_TOP, MAIN_HEADER, HORZ_HEADER, TOOLBAR_BOTTOM and STATUSBAR components.
This component’s vertical scroll range and position is linked to that of the client component’s vertical scroll range and position. When the client component is scrolled vertically, this component receives a duplicate of all scroll messages.		 width
WND_WC_HEADER_BUTTON Height and width are dependent on the horizontal and vertical headers’ height and width. none
WND_WC_CLIENT Height and width are dependent on the remainder of the parent’s client area after subtracting all other components. none

Structures, Data types, and Defines

GW_xxx

These flags are used with the function WNDgetWindow:

GWL_xxx

These flags are used with the functions WNDgetWindowLong and WNDsetWindowLong:

// inflate the paint area on the left and right by 2 pixels, and 4
// pixels to the bottom
qrect inflateRect( -2, 0, 2, 4 );
WNDsetWindowLong(theHwnd, GWL_INFLATE_ALL, WNDmakeLong(&inflateRect));

HDC

The HDC is a graphical device context and is fully documented in the GDI Reference chapter.

HTxxx

These defines are used by some mouse related message, for example, WM_SETCURSOR, to specify the part of a window, the mouse is currently over.

HWND

A handle or reference to a child window.

HWND_xxx

You can use the following defines instead of a valid HWND with some of the functions in the API:

LPARAM

LPARAM is a typedef and is of type unsigned long. The lParam and uParam parameters of the WndProc function are of this type.

SW_xxx

These flags are used with the function WNDshowWindow:

SWP_xxx

These flags are used with the functions WNDsetWindowPos and WNDsetWindowPosEx:

UINT

The UINT is defined as an unsigned integer. The message parameter of the WndProc function is of this type.

WM_EXUSER

WM_EXUSER is the base define for all user defined messages for the external components. External components which use the HWND module can create their own message by defining a WM_your_constant as WM_EXUSER + n, where n can be in the range HEX 0 to HEX 1FFF.

Example:

#define WM_MY_MESSAGE1 WM_EXUSER+1
#define WM_MY_MESSAGE2 WM_EXUSER+2

WND_CAPTURE_xxx

These flags are used with the functions WNDsetCapture and WNDreleaseCapture to specify the capture for mouse or key events:

WND_BORD_xxx

These are the flags for the various border styles of a window. They are used to set the mBorderStyle member of the WNDborderStruct. WNDborderStruct is used with the functions WNDcreateWindow, WNDgetBorderSpec, WNDsetBorderSpec, WNDinsetBorderRect, WNDinflateBorderRect, WNDaddWindowComponent and WNDpaintBorder.

WND_CURS_xxx

These flags are used with the WNDsetWindowCursor and WNDgetWindowCursor functions to specify the cursor type associated with a window, and the functions WNDsetCursor and WNDgetCursor, to instantly change the cursor on screen.

WND_RW_xxx

Used with WNDredrawWindow to redraw/invalidate or update the non-client and/or client area of a window:

WND_SCROLLBAR_WIDTH (v3.1)

Returns the width in pixels of a standard scrollbar.

WND_TIMER_xxx

These constants are used with the WNDsetTimer and WNDkillTimer functions:

WNDborderStruct

The border struct contains information for the border style of a window. It is used with the functions WNDcreateWindow, WNDaddWindowComponent, WNDsetBorderSpec, and WNDgetBorderSpec.

struct WNDborderStruct
{
  qshort mBorderStyle;
  qpen mLineStyle;
  qdim mSize1;
  qdim mSize2;
  qdim mSize3;
  qcol mColor;
  WNDborderStruct();
  WNDborderStruct( qshort pBorderStyle );
  WNDborderStruct( qshort pBorderStyle, qpen pLineStyle );
  WNDborderStruct( qshort pBorderStyle, qdim pSize1, qdim pSize2, qdim pSize3 );
  WNDborderStruct( qshort pBorderStyle, qpen pLineStyle, qdim pSize1, qdim pSize2, qcol pColor );
};

WNDenumProc

typedef qbool (*WNDenumProc)( HWND hwnd, LPARAM lParam );

WNDeraseInfoStruct

struct WNDeraseInfoStruct
{
  qcol   mBackColor;
  qcol   mForeColor;
  qcol   mFillPat;
  qulong mBKTheme;
}

WNDminMaxInfo

struct WNDminMaxInfo
{
  qpoint  ptReserved;
  qpoint  ptMaxSize;
  qpoint  ptMaxPosition;
  qpoint  ptMinTrackSize;
  qpoint  ptMaxTrackSize;
};

WNDmultiKey (v4.1)

WNDmultiKey is a class used to pass multiple keypress information via event parameters and is used in conjunction with WM_MULTIKEYxxx events. WNDmultiKey is defined in hwnd.he and contains the following public members:

WNDpaintStruct

struct WNDpaintStruct
{
  HDC     hdc;
  qbool  fErase;
  qrect  rcPaint;
  HDC    fRestore;
};

WNDprocClass

class WNDprocClass
{
  public:
  virtual qlong WndProc(HWND hWnd, UINT message, WPARAM wParam,LPARAM lParam, LPARAM uParam ) = 0;
};

WNDwindowPosStruct

struct WNDwindowPosStruct
{
  HWND   hwnd;
  HWND   hwndInsertAfter;
  qdim   x;
  qdim   y;
  qdim   cx;
  qdim   cy;
  qulong flags;
};

WPARAM

Styles

WND_DRAGBORDER (extended style)

If this extended style is specified for a component other than WND_WC_FRAME and WND_WC_CLIENT, the user can size the window at runtime. When the cursor moves over the correct border edge (which edge can be dragged depends on the component type) the cursor changes to WND_CURS_SPLITTER_VERT or WND_CURS_SPLITTER_HORZ. Sizing a component effects the size of other sibling components.

WND_FLOAT_xxx (extended style)

These are the floating styles for a window. Floating takes place if the parent of a floating window is sized. The window is sized or moved, horizontally or vertically by the same amount the parent has grown or shrunk by. The floating style can only be specified for windows of type WND_WC_FRAME. The following styles are defined:

WND_KEYPREVIEW (extended style)

If specified, WM_KEYDOWNPREVIEW and WM_KEYUPPREVIEW messages are generated and sent to all parents of the window for which the actual key message was intended. The parameters are identical to WM_KEYDOWN and WM_KEYUP. If a parent deals with a key and returns 0, no further messages are sent relating to the key.

WND_NOADJUSTCOMPONENTS (extended style)

If this style is specified, the component windows of the window are not sized when the window’s size changes. The window component type of all child windows is ignored.

WND_NOFLOATCHILDREN (extended style)

If this style is specified, no child windows of the window are floated when the window size changes. All floating styles of all child windows are ignored.

WND_OSMESSAGES (extended style)

If this style is specified, the window can receive additional non-cross-platform messages, messages which are not normally supported by the hwnd module. Under Windows 95 platform this may be messages like WM_DROPFILES, etc. This style is currently not supported under MacOS.

WND_REDRAWONSIZE (extended style)

If this style is specified, all of the client area of the window is invalidated when the width or height of the window changes. By default only the uncovered areas are invalidated.

WND_TRANSPARENT (extended style)

If this style is specified, the window becomes transparent. Transparent windows do not receive erase background messages and are painted last (after all non-transparent windows have been painted) and in reverse order. They do not clip the visual region of sibling windows which they cover, nor do they clip their parent. If areas within a transparent window are invalidated, all intersecting sibling windows are effected as well as the area within the parent.

Note: Transparent windows are less efficient, and may not always yield the desired results. Omnis uses transparent windows only for background objects in window and report classes.

WND_WC_xxx (extended style)

The WND_WC_xxx styles are used with the functions WNDaddWindowComponent, WNDremoveWindowComponent, WNDgetWindowComponent, and WNDnextWindowComponent. These flags specify the component type of a window.

WS_xxx

These are the windows basic styles.

Messages

When users interact with a window, or a window’s properties change, appropriate messages are generated. These messages can be received by sub-classing the WNDprocClass and overloading the virtual function WndProc. An instance of that class must be specified when creating a window. More than one window can be associated with the same instance in this way. The correct HWND is sent to the WndProc function along with its message.

Example of a WndProc function:

qlong MyWndProc::WndProc( HWND hWnd, UINT message, WPARAM wParam, lParam, LPARAM uParam )
{
  switch ( message )
  {
    case WM_GETMINMAXINFO:
    {
      // calculate the minimum tracking size
      WNDminMaxInfo* info = (WNDminMaxInfo*)lParam;
      // first get minimum tracking size for child windows from HWND
      WNDgetMinMaxInfo( hWnd, info );
      if ( info->ptMinTrackSize.h < 300 )
      {
        // do not allow size less than 300 pixels horizontally
        info->ptMinTrackSize.h = 300;
      }
      return 0L;
    }
    case WM_WINDOWPOSCHANGED:
    {
      // reset the scroll range
      qdim hRange = 200;
      qdim vRange = 400;
      qrect cRect;
      WNDgetClientRect( hWnd, &cRect );
      WNDsetScrollRange( hWnd, SB_HORZ, 1, hRange, cRect.width(), qtrue );
      WNDsetScrollRange( hWnd, SB_VERT, 1, vRange, cRect.height(), qtrue );
      break;
    }
  }
  return DefWindowProc( hwnd, message, wparam, lparam );
}

Note: All message examples are assumed to have the following pieces of code surrounding them:

qlong cMyWndProcClass::WndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam, LPARAM uParam )
{
  switch ( message )
  {
    case WM_xxx:
    {
      // example
    }
  }
  return DefWindowProc( hwnd, message, wparam, lparam );
}

WM_BORDCALCRECT

The WM_BORDCALCRECT message is sent when the client area of window needs to be calculated and the border style of the window is WND_BORD_CUSTOM.

Parameters:

Returns:

Always return 1.

The amount by which the rectangle is inflated or inset depends on how much space the custom border requires. It directly effects the size of the client area of the window.

Example:

// this example custom border has a single pixel line at the top and bottom
qrect* pRect = (qrect*)lParam;
if ( wParam )
{
  // inflate
  pRect->top++;
  pRect->bottom++;
}
else
{
  // inset
  pRect->top--;
  pRect->bottom--;
}
return 1L;

WM_BORDERCHANGED (v3.1)

The WM_BORDERCHANGED message is send when WNDsetBorderSpec is called, and after the border has been changed in the HWND.

Parameters:

Returns:

Always return 1L.

See also WM_BORDERCHANGING, WNDsetBorderSpec

WM_BORDERCHANGING (v3.1)

The WM_BORDERCHANGING message is send when WNDsetBorderSpec is called, prior to the border being changed.

Parameters:

Returns:

Return 1 if WNDsetBorderSpec is to go ahead. Return 0 to prevent the border from changing.

Example:

// this example makes a copy of the border spec and prevents WNDsetBorderSpec from changing
// the border in the HWND (the control draws and manages the border it self)
qbool redraw = (qbool)wParam;
WNDborderStruct* borderSpec = (WNDborderStruct*)lParam;
mBorderSpec = *borderSpec;
if ( redraw )
{
  // invalidate our control
}

See also WM_BORDERCHANGED, WNDsetBorderSpec

WM_BORDERASEBACKGROUND (v4.0)

The WM_BORDERERASEBACKGROUND message is sent when painting a WND_BORD_CTRL_GROUPBOX on Windows XP. The message informs the control that two 3-pixel strips immediately above and below the control should be erased.

Example: (excerpt from WndProc)

//..
case WM_BORDERASEBACKGROUND:
{
  if (isSetup())
    eraseBorderBackground(hWnd, (HDC) wParam, (qrect *) lParam);
  return 1L;
}

WM_BORDPAINT

The WM_BORDPAINT message is sent when the border of a window needs painting and the border style of the window is WND_BORD_CUSTOM.

Returns:

Always return 1.

Example:

// this example custom border has a single pixel line at the top and bottom
HDC dc = (HDC)wParam;
qrect* pRect = (qrect*)lParam;
HPEN oldPen = GDIselectObject( dc, GDIgetStockPen( BLACK_PEN ) );
GDIsetTextColor( GDI_COLOR_QBLACK );
GDImoveTo( dc, pRect->left, pRect->top );
GDIlineTo( dc, pRect->right, pRect->top );
GDImoveTo( dc, pRect->left, pRect->bottom );
GDIlineTo( dc, pRect->right, pRect->bottom );
GDIselectObject( dc, oldPen );
return 1L;

WM_CAPTUREABORT

This message is sent by WNDabortMouseCapture() before it releases capture of the mouse pointer (WNDreleaseCapture()). Return type is void.

Parameters: None.

Example:

//will be followed immediately by WM_CAPTURECHANGED
case WM_CAPTUREABORT:
{
  tqfFishEyeObject *object = (tqfFishEyeObject*) ECOfindObject(eci, hwnd);
  if (object)
  {
    object->trackingEnabled(qtrue);
    object->mDestroyOnCaptureChange = qtrue;
  }
  break;
}

WM_CHILDPAINT

The WM_CHILDPAINT message is sent for every child window when a window requests its children to be painted by calling the WNDredrawChildren function.

Returns:

An external component should return zero if it processes this message. If non-zero is returned, a WM_PAINT message is sent to the child window.

Example:

See WNDredrawChildren.

WM_COREPATTERNGRADIENTSUPPORT (v5.0)

This message returns qtrue if the object wants gradients to be shown in the pattern palette in the property inspector, i.e. for $backpattern. Return qfalse to disable gradient back patterns.

Parameters: None.

WM_CREATE

The WM_CREATE message is sent when an external component requests that a window be created by calling the WNDcreateWindow or WNDaddWindowComponent function. The WndProc function for the new window receives this message after the window is created but before the window becomes visible. The message is sent to the window before the WNDcreateWindow or WNDaddWindowComponent function returns.

Parameters:

None.

Returns:

Must always return 0.

WM_DESTROY

The WM_DESTROY message is sent when a window is being destroyed. It is sent to the WndProc function of the window being destroyed after the window is removed from the screen.

This message is sent first to the window being destroyed and then to the child windows as they are destroyed. During the processing of the WM_DESTROY message, you can assume that all child windows still exist.

Parameters:

None.

Returns:

Must always return 0.

WM_DRAGBORDER

WM_DRAGBORDER is sent during border dragging every time the size of the component is changed, after all children and sibling components have been sized.

Parameters:

isVert - value of wParam. If qtrue we are dragging a vertical border.

Returns:

Must always return 0.

WM_DRAGDROP

WM_DRAGDROP message is sent during drag & drop operations. Care should be taken not to process these messages during design mode. Most of these messages can be ignored and simply passed into WNDdefWindowProc or returned with a status of -1 for WebClient.

Parameters:

DD_STARTDRAG
Indicates that the drag process is starting. Normally this message is ignored. LParam will contain a pointer to the FLDdragDrop structure.

DD_ENDDRAG
Indicates that the drag process is finishing. Normally this message is ignored. LParam will contain a pointer to the FLDdragDrop structure.

DD_CHILD_STARTDRAG
Indicates that the drag process is starting. Sent to the parent of the dragging window. LParam will contain a pointer to the FLDdragDrop structure.

DD_CHILD_ENDDRAG
Indicates that the drag process is finishing. Sent to the parent of the dragging window. LParam will contain a pointer to the FLDdragDrop structure.

DD_CANDRAG_ON_DOWN
Enquiry on whether dragging can be started by a mouse button down action. Return true or false, or simply ignore the message. LParam will contain a pointer to a qpoint structure which will contain the mouse position. The point is local to the client area of the window which receives these messages.

DD_CANDRAG_ON_MOVE
Enquiry on whether dragging can be started by a mouse move action. Return true or false, or simply ignore the message. LParam will contain a pointer to a qpoint structure which will contain the mouse position. The point is local to the client area of the window which receives these messages.

DD_CANDROP
Sent to the drop control and it can return qtrue if drop action is allowed. LParam will contain a pointer to the FLDdragDrop structure and member mDropPoint may be used to establish drop position.

DD_CANDROP_OVER
Sent to the drop control and it can return qtrue if dropping is allowed. LParam will contain a pointer to the FLDdragDrop structure and member mDropPoint may be used to establish mouse position.

DD_CANDROPPARENT
Sent to the parent of the drop control and it can return qtrue if dropping is allowed. LParam will contain a pointer to the FLDdragDrop structure and member mDropPoint may be used to establish mouse position.

DD_HILITE
Request to the current dropping control to hilite its acceptance to allow dropping. LParam will contain a pointer to the FLDdragDrop structure.

DD_UNHILITE
Request to the current dropping control to unhilite itself. LParam will contain a pointer to the FLDdragDrop structure.

DD_ALWAYS_HILITE
Request to the current dropping control to establish whether highlighting is required. Return qtrue or qfalse. LParam will contain a pointer to the FLDdragDrop structure

DD_SHOWDRAGSHAPE
Message to show the drag shape. Normally this is ignored. LParam will contain a pointer to the FLDdragDrop structure.

DD_HIDEDRAGSHAPE
Message to hide the drag shape. Normally this is ignored. LParam will contain a pointer to the FLDdragDrop structure.

DD_MOVEDRAGSHAPE
Message to move the drag shape. Normally this is ignored. LParam will contain a pointer to the FLDdragDrop structure.

DD_CANSCROLL
Request to the current dropping control to establish whether scroll is required. Return qtrue or qfalse. If qtrue is returned then DD_DRAGDROPSCROLL will be sent. LParam will contain a pointer to the FLDdragDrop structure.

DD_GETSCROLLRECT
Request to the current dropping control for it to adjust the scrolling rectangle, if required. Return qtrue if processed. lParam will contain a pointer to the qrect which can be adjusted.

DD_DRAGDROPSCROLL
Request to the current dropping control for it to scroll, if required. Return qtrue if processed. lParam will contain a pointer to the qpoint which can be used to ensure that the point is inside the control.

DD_SETDRAGVALUE
Request for control to set the drag value and can be used, for example, to set the drag value to a selection of text. LParam will contain a pointer to the FLDdragDrop structure.

DD_GETDRAGCONTAINER
Request for control to set the drag source HWND (FLDdragDrop member mDragSourceHwnd). Normally this is ignored but can be useful for complex controls that allow dragging of multiple HWNDs. LParam will contain a pointer to the FLDdragDrop structure.

DD_BUTTONDOWN
Message that the button is down during drag move. Normally this is ignored but it can be used to change drop tabs on a tabbed pane control, for example. LParam will contain a pointer to the FLDdragDrop structure.

DD_BUTTONUP
Message that the button is up during drag move. Normally this is ignored but it can be used to change drop tabs on a tabbed pane control, for example. LParam will contain a pointer to the FLDdragDrop structure.

Returns:

Depends on the value of wDragDropCode, but most of these messages can be ignored and simply passed into WNDdefWindowProc or returned with a status of -1 for WebClient.

Example:

// #1: this example is taken from the list control
case WM_DRAGDROP:
{
  switch ( wParam )
  {
    case DD_CANDRAG_ON_DOWN: return qfalse;
    case DD_CANDRAG_ON_MOVE: {
      qlong lineNumber = lineNumberFromPoint( (qpoint*)lParam );
      return lineNumber!=0; } // Start drag if the mouse is over a line
    case DD_SETDRAGVALUE: {
      FLDdragDrop* dragDrop = (FLDdragDrop*)lParam;
      EXTfldval dtype( dragDrop->mDragType );
      dtype.setLong( cFLDdragDrop_dragData ); // We are dragging data
      EXTfldval dval( dragDrop->mDragValue );
      dval.setList( mLocalList, qfalse); // Set data to our list
      return qtrue; }
    default: // Not processed
      #ifdef isRCC
        return 0xffffffffL; // Web component
      #endif
      return DefWindowProc(hWnd,pMsg,wParam,lParam);
    }
  }
  //#2: this example is taken from the droplist control
qbool tqfDroplist::dragDrop( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam, qbool pDoEdwc)
{
  switch( message ) {
    case WM_DRAGDROP:
    {
      switch ( wParam ) {
        case DD_CANDRAG_ON_DOWN:
        case DD_CANDRAG_ON_MOVE:  {
          if ( mIsDropped ) return qfalse;
          if ( !isDesign() && !readOnly() && udDragMode()==cFLDdragDrop_dragData ) {
            qpoint pt = *((qpoint*)lParam);
            qrect r; WNDgetClientRect( wnd(), &r );
            r.left = r.right-mButtonWidth;
            if ( GDIptInRect( &r, &pt ) ) return qfalse; //don't allow data dragging from the button
          }
          break;
        }
        case DD_SETDRAGVALUE:
        {
          if ( !isDesign() && dDragMode()==cFLDdragDrop_dragData && !!mList) {
            FLDdragDrop *dragDrop = (FLDdragDrop *) lParam;
            dragDrop->setDragType( cFLDdragDrop_dragData );
            fldval* dval = dragDrop->getDragValue( qtrue );
            dval->setlist( mList.getlstptr(), qfalse ); //don't make copy of list
            return qtrue;
          }
          break;
        }
      }
    }
  }
  return tqfld::dragDrop( hWnd, message, wParam, lParam, pDoEdwc );
}

See also FLDdragDrop

WM_ERASEBKGND

The WM_ERASEBKGND message is sent when the window background needs to be erased (for example, when a window is sized). It is sent to prepare an invalidated region for painting. From v3.1 onwards you should always call WNDdrawThemeBackground and only erase the area manually if the function returns qfalse. See example below.

Parameters:

Returns:

An external component should return non-zero if it erases the background; otherwise, it should return zero.

Example:

HDC dc = (HDC)wParam;
qrect cRect; WNDgetClientRect( hWnd, &cRect );
if ( !WNDdrawThemeBackground(hWnd,dc,&cRect,WND_BK_DEFAULT) )
{
  GDIsetTextColor( dc, GDI_COLOR_WINDOW );
  GDIfillRect( dc, &cRect, GDIgetStockBrush( BLACK_BRUSH ) );
}
return 1L;

WM_FOCUSCHANGED

This message is generated when the input focus has been changed by Omnis. If a window displays an input caret, this is the time when the caret should be created or destroyed.

Parameters:

Returns:

An external component should return non-zero if it creates or destroys the caret; otherwise, it should return zero.

Example:

// this example creates a text input cursor at character position 7
// of some text the control is displaying
switch ( message )
{
  case WM_FOCUSCHANGED:
  {
    if ( wParam )
    {
      // create the caret, if ovrTypeOn is qtrue, we in over type mode
      // and the caret is displayed as a block, otherwise we are in
      // insert mode, and the caret is displayed as a vertical line.
      GDItextSpecStruct tSpec(fntEdit,styPlain,GDI_COLOR_WINDOWTEXT,jstLeft);
      str255 text( “This is an example for WNDcreateCaret” )
      qdim caretHeight = GDIfontPart( &tSpec.mFnt, tSpec.mSty, eFontHeight );
      qdim caretWidth = ( ovrTypeOn ? GDIcharWidth( text[8], &tSpec ) : 1 );
      qdim caretLeft = GDItextWidth( &text[1], 7, &tSpec );
      qrect cRect;
      qpoint pt;
      WNDgetClientRect( hWnd, &cRect );
      pt.h = cRect.left + caretLeft;
      pt.v = cRect.top + 1;
      WNDcreateCaret( hWnd, caretWidth, caretHeight );
      WNDsetCaretPos( &pt );
      WNDshowCaret();
    }
    else
    {
      // destroy the caret
      WNDdestroyCaret( hWnd );
    }
    return 1L;
  }
}

WM_GETERASEINFO

This message is generated during non-client painting of a window, when the non-client area contains dead areas which need to be erased. Dead areas occur when a window has both horizontal and vertical scrollbars, or has a shadow border style. In response to this message the WNDeraseInfoStruct must be filled in. A pointer to this structure is supplied in lParam.

Parameters:

Returns:

Always return 0.

Example:

WNDeraseInfoStruct *eraseInfo = (WNDeraseInfoStruct*)lParam;
eraseInfo->mBackColor = colWhite;
eraseInfo->mForeColor = colBlack;
eraseInfo->mFillPattern = patFill;
return 0L;

WM_GETMINMAXINFO

The WM_GETMINMAXINFO message is sent to a window whenever Omnis needs the maximum or minimum tracking size of the window. The maximum tracking size of a window is the largest window size that can be achieved by using the borders to size the window. The minimum tracking size of a window is the smallest window size that can be achieved by using the borders to size the window. This message is not usually generated by the HWND module (except during border dragging, see WM_DRAGBORDER), but by other parts of Omnis, for example, window design. However, the function WNDgetMinMaxInfo can be used to assist in calculating the minMaxInfo of a component window when this message is received. When components are used this function should always be called. It is recursive in that it generates further WM_GETMINMAXINFO messages for all child windows. After calling this function, any further restrictions can be applied to the minMaxInfo it calculated.

Parameters:

Returns:

Always return 1.

Example:

WNDminMaxInfo* minMaxInfo = (WNDminMaxInfo*)lParam;
WNDgetMinMaxInfo( hWnd, minMaxInfo );
if ( minMaxInfo->ptMinTrackSize < 100 ) minMaxInfo->ptMinTrackSize = 100;
if ( minMaxInfo->ptMaxTrackSize > 400 ) minMaxInfo->ptMinTrackSize = 400;
return 1L;

WM_GETSHADOWRECT (Mac OSX only)

The WM_GETSHADOWRECT message is send when the HWND manager needs to paint a WND_BORD_CTRL_TABPANE or WND_BORD_CTRL_SHADOW_EX border on Mac OSX. This allows the control to manipulate the rect prior to it being drawn. If the border is to be drawn as is, you do not need to respond to this message.

Parameters:

Example:

qrect* theRectPtr = (qrect*)lParam;
theRectPtr->top += 10;
return 1L;

WM_HSCROLL and WM_VSCROLL

The WM_HSCROLL message is sent to a window when the user clicks the window's horizontal scroll bar (WM_VSCROLL if the user clicks the vertical scrollbar).

Parameters:
SB_ENDSCROLL End scroll.
SB_LEFT or SB_TOP Scroll to far left or top.
SB_LINELEFT or SB_LINEUP Scroll one line left or up.
SB_LINERIGHT or SB_LINEDOWN Scroll one line right or down.
SB_PAGELEFT or SB_PAGEUP Scroll one page left or up.
SB_PAGERIGHT or SB_PAGEDOWN Scroll one page right or down.
SB_RIGHT or SB_BOTTOM Scroll to far right or bottom.
SB_THUMBPOSITION Scroll to absolute position. The current position is specified by the LOWORD of lParam.
SB_THUMBTRACK Drag scroll box (thumb) to specified position. The current position is specified by the LOWORD of lParam.

Returns:

An external component should return zero if it processes this message.

The SB_THUMBTRACK scroll bar code is typically used by external components that give some feedback while the scroll box is being dragged.

If an external component scrolls the contents of the window (see WNDscrollWindow), it must also reset the position of the scroll box by using the WNDsetScrollPos function.

Example:

qdim min, max, page, oldPos, newPos;
qshort sbar = ( message == WM_HSCROLL ? SB_HORZ : SB_VERT );
// get current scrollbar settings
WNDgetScrollPos( hWnd, sbar, &oldPos );
WNDgetScrollRange( hWnd, sbar, &min, &max, &page );
// calculate newPos appropriately
switch ( wParam )
{
  // in this example 1 scroll unit equals 8 pixels
  case SB_LINEDOWN: newPos = oldPos + 8; break;
  case SB_LIENUP: newPos = oldPos - 8; break;
  case SB_PAGEDOWN: newPos = oldPos + page; break;
  case SB_PAGEUP: newPos = oldPos - page; break;
  case SB_TOP: newPos = min; break;
  case SB_BOTTOM: newPos = max; break;
  case SB_THUMBPOSITION:
  case SB_THUMBTRACK:
  {
    // handle sign extension correctly
    qshort shortNewPos = LOWORD( lParam );
    newPos = shortNewPos;
    break;
  }
  case SB_ENDSCROLL: return 1L;
  default: newPos = oldPos; break;
}
if ( newPos != oldPos )
{
  qdim hOff = ( sbar == SB_HORZ ? oldPos - newPos : 0 );
  qdim vOff = ( sbar == SB_VERT ? oldPos - newPos : 0 );
  WNDsetScrollPos( hWnd, sbar, newPos, qtrue );
  WNDscrollWindow( hWnd, hOff, vOff );
}

WM_IPHONE_ROUNDRECT_TEXTFIELDSTYLE

This message should return qtrue if the iPhone rounded rectangle border is the same as the UITextField border, qfalse otherwise. This message applies only to iPhone client component development (Studio v5.0).

Parameters:

None.

WM_KEYxxx

The WM_KEYDOWN message is sent when a key is pressed and the window has the key capture (See function WNDsetCapture). If a parent window has the WND_KEYPREVIEW style, the WM_KEYDOWNPREVIEW message is sent to that parent prior to the child receiving the WM_KEYDOWN message. WM_KEYUP and WM_KEYUPPREVIEW messages are generated when the key is released.

Parameters:

Returns:

An external component should return zero if it processes this message. Otherwise it must return 1, so Omnis can continue processing the key.

Example:

// in this example we are only interested in movement keys to scroll
// the window vertically on a WM_KEYDOWN message
qkey* key = (qkey*)lParam;
vchar vch = key->getVChar();
if ( vch ) switch ( vch )
{
  case vcUp:    wParam = SB_LINEUP;   break;
  case vcDown:  wParam = SB_LIENDOWN; break;
  case vcPup:   wParam = SB_PAGEUP;   break;
  case vcDown:  wParam = SB_PAGEDOWN; break;
  case vcHome:  wParam = SB_TOP;      break;
  case vcEnd:   wParam = SB_BOTTOM;   break;
  default:   return 1L;
}
else
{
  return 1L;
}
WNDsendMessage( hWnd, WM_VSCROLL, wParam, 0 );
return 0L;

WM_LBUTTONxxx and WM_RBUTTONxxx

The WM_LBUTTONxxx and WM_RBUTTONxxx messages are generated when the user operates the left or right mouse button.

Note: Under MacOS right button clicks are generated by holding down the option key while operating the mouse button.

Parameters:

Returns:

An external component should return zero if it processes this message.

Example:

// This is an example for a simple pushbutton dealing with mouse tracking
// when the user clicks on the button.
switch ( message )
{
  case WM_LBUTTONDOWN:
  {
    if ( ! WNDhasCapture( hWnd, WND_CAPTURE_MOUSE ) )
    {
      // set the capture for mouse tracking
      WNDsetCapture( hWnd, WND_CAPTURE_MOUSE );
      // paint the button in the down position
      // remember the position in a member
      mDown = qtrue;
    }
    return 0L;
  }
  case WM_MOUSEMOVE:
  {
    if ( WNDhasCapture( hWnd, WND_CAPTURE_MOUSE ) )
    {
      qpoint pt; WNDmakePoint( lParam, &pt );
      qrect cRect; WNDgetClientRect( hWnd, &cRect );
      if ( mDown != GDIptInRect( &cRect, &pt ) )
      {
        // the user has moved the mouse out of the button,
        // or into the button.
        // paint the button up or down
        mDown = !mDown;
      }
    }
    return 0L;
  }
  case WM_LBUTTONUP:
  {
    if ( WNDhasCapture( hWnd, WND_CAPTURE_MOUSE ) )
    {
      // tracking has finished, release the mouse capture
      WNDreleaseCapture( hWnd, WND_CAPTURE_MOUSE );
      // was the mouse button released inside the client area
      if ( mDown )
      {
        // do something
        // paint the button in the up position
        mDown = qfalse;
      }
    }
  return 0L;
  }
}

WM_MOUSEMOVE

The WM_MOUSEMOVE message is sent to a window when the mouse cursor moves. If the mouse is not captured, the message goes to the window beneath the cursor. Otherwise, the message goes to the window that has captured the mouse.

Parameters:

Returns:

An external component should return zero if it processes this message.

Example:

See WM_LBUTTONDOWN

WM_MOUSEWHEEL

The WM_MOUSEWHEEL message is sent to a window when the mouse wheel is rotated.

If the mouse is not captured, the message goes to the window beneath the cursor. Otherwise, the message goes to the window that has captured the mouse.

Parameters:

direction – Value of wParam. The high-order word indicates the distance the wheel is rotated. A positive value indicates that the wheel was rotated forward, away from the user; a negative value indicates that the wheel was rotated backward, toward the user.

Returns:

An external component should return zero if it processes this message.

Notes:

On macOS

1) The direction value will be either 0, 1 or -1. No other values are supported.

2) Controls that have no scroll bars added will need to respond to WM_FLD_NEEDSWM_MOUSEWHEEL to receive a WM_MOUSEWHEEL message ( see example )

Example:

// This is an example handing WM_MOUSEWHEEL
// Processing to be added to WNDPROC..
switch ( message )
{
  // controls with no scroll bars need to return 1L for the WM_FLD_NEEDSWM_MOUSEWHEEL message to receive WM_MOUSEWHEEL
  case WM_FLD_NEEDSWM_MOUSEWHEEL: return 1L;
  //
  case WM_MOUSEWHEEL:
  {
    // Mouse wheel moved
    if ( wParam )
    {
      qbool lineUp = ((qshort)HIWORD(wParam)) >= 0;
    }
    // return 0 to indicate this control has processed this message.
    return 0L;
  }

WM_MULTIKEYDOWNPREVIEW

Sent to parent window on a WM_MULTIKEYDOWN event if parent has WND_KEYPREVIEW set (currently WM_MULTIKEYDOWN only applies to Mac OSX).

Parameters:

Returns:

An external component should return zero if it processes this message.

WM_NCACTIVATE

The WM_NCACTIVATE message is sent when a window is activated or deactivated. A window becomes active when it becomes the topmost window (ignoring all floating palette windows).

Parameters:

Returns:

Always return zero.

Example:

// in this example the control needs to draw its control items disabled
// when a window is not active.
qbool active = (qbool)wParam;
if ( active )
{
  // paint control enabled
}
else
{
  // paint control disabled
}

WM_NCLBUTTONDOWN

The WM_NCLBUTTONDOWN message is sent when the left mouse button has been held down over the non-client area of a window.

Parameters:

Returns:

An external component should return zero if it processes this message.

Example:

// this example lets the user drag the window via the top area of the
// border restricting the movements to the client area of the parent window
if ( wParam == HTBORDER )
{
  // test if the mouse is in the top part of the border
  qpoint pt; WNDmakePoint( lParam, &pt );
  qrect cRect; WNDgetClientRect( hWnd, &cRect );
  // map client rect to desktop
  WNDmapWindowRect( hWnd, HWND_DESKTOP, &cRect );
  if ( pt->v <= cRect.top )
  {
    // restrict movement of mouse to parent’s client area
    HWND parentHwnd = WNDgetParent( hWnd );
    WNDgetClientRect( parentHwnd, &cRect );
    WNDmapWindowRect( parentHwnd, HWND_DESKTOP, &cRect );
    WNDclipCursor( &cRect );
    // loop following the mouse movements while the button is held down
    qpoint lastPt = pt;
    qpoint curPt;
    while ( WNDmouseLeftButtonDown() )
    {
      WNDgetCursorPos( &curPt );
      qdim hDiff = curPt.h - lastPt.h;
      qdim vDiff = curPt.v - lastPt.v;
      if ( hDiff || vDiff )
      {
        // move the window
        qrect wRect; WNDgetWindowRect( hWnd, &wRect );
        // WNDmoveWindow expects coordinates for the window local to
        // the parent’s client area
        WNDmapWindowRect( HWND_DESKTOP, parentHwnd, &wRect );
        WNDmoveWindow( hWnd, wRect.left + hDiff, wRect.top + vDiff, wRect.width(), wRect.height(), qtrue );
        // update parent and all children to give immediate feedback
        // to the user
        WNDredrawWindow( parentHwnd, NULL, NULL, WND_RW_UPDATE | WND_RW_ALLCHILDREN | WND_RW_ERASE );
        lastPt = curPt;
      }
    }
    // must clear cursor clipping before returning
    WNDclipCursor( NULL );
    return 0L;
  }
}
return 1L;

WM_NULL

This message is generated while the computer is idle, that is, no other messages are pending, and the mouse capture is set (see WNDsetCapture).

Parameters:

None.

Returns:

Always return 1.

WM_PAINT

The WM_PAINT message is sent when a portion of a window needs repainting. To repaint a window the function WNDbeginPaint must be called, followed by a call to WNDendPaint after all painting has been done.

Note: Nested calls to WNDbeginPaint or WNDstartDraw are not supported and result in a runtime error.

Parameters:

None.

Returns:

An external component should return zero if it processes this message.

Example:

WNDpaintStruct paintInfo;
WNDbeginPaint( hWnd, &paintInfo );
// paint the control
WNDendPaint( hWnd, &paintInfo );
return 0L;

WM_PRI_INSTALL

The WM_PRI_INSTALL message is sent when the print manager opens the page preview or screen report, and an alternative hwnd has been specified in PRIdestParmStruct when calling PRIstartJob or PRIredirectJob. For more information about printing refer to the print manager documentation.

It is possible to write external components which will display screen or preview reports. When a report is about to be displayed in the given HWND, WM_PRI_INSTALL is sent to the HWND. When the report is closed, WM_PRI_REMOVE is sent.

The component will be responsible for killing an active print job when a new job is about to use the HWND. The component must store the pointer to the job which currently occupies the HWND.

Parameters:

Returns:

An external component should return 1L if it processes this message.

Example:

// if there is an existing job occupying the hwnd, kill the job
if ( mJob ) PRIdefOutputProc( mJob, mOutput, PM_OUT_KILL, 0, 0, 0 );
// remember the new job and device
mJob = (PRIjob)lParam;
mOutput = (void*)uParam;
return 1L;

WM_PRI_REMOVE

The WM_PRI_REMOVE message is sent when the print manager closes the page preview or screen report, and an alternative hwnd has been specified in PRIdestParmStruct when calling PRIstartJob or PRIredirectJob. See WM_PRI_INSTALL.

The component will be responsible for killing an active print job when a new job is about to use the HWND. The component must store the pointer to the job which currently occupies the HWND.

Parameters:

None.

Returns:

An external component should return 1L if it processes this message.

Example:

// clear the job and device
mJob = 0;
mOutput = 0;
return 1L;

WM_RBUTTONxxx

See WM_LBUTTONxxx.

WM_OSXREPAINTPLUGIN (v5.0)

This message informs an OSX browser plugin that it needs to repaint. It is issued by WNDabortMouseCapture()

Parameters:

None.

Example:

case WM_OSXREPAINTPLUGIN:
{
  mThis->mNeedPaint = qtrue;
  break;
}

WM_SETCURSOR

WM_SETCURSOR is generated every time the mouse moves across a window and the mouse capture has not been set. If WM_SETCURSOR is passed on to the DefWindowProc the cursor is set to the arrow cursor if the mouse is over the non-client area of the window. If the function WNDcheckCursor is called in response to this message, the HWND module sets the cursor to the appropriate cursor depending on the cursor associated with the window or the windows parents (see WNDsetWindowCursor).

Parameters:

If nHittest is set to HTCLIENT, the window procedure should call WNDcheckCursor.

Note: While the mouse capture is on, no WM_SETCURSOR messages are generated.

Example:

// in this example the cursor is set to a drag cursor when the mouse is over
// the top part of the border
qword2 hittest = LOWORD(lParam);
if ( hittest == HTBORDER )
{
  // test if we are in the top part of the windows border
  qpoint pt; WNDgetCursorPos( &pt );
  qrect cRect; WNDgetClientRect( hWnd, &cRect );
  // map client rect to desktop
  WNDmapWindowRect( hWnd, HWND_DESKTOP, &cRect );
  if ( pt.v <= cRect.top )
  {
    WNDsetCursor( WND_CURS_DRAG_OBJECT );
    return 1L;
  }
}
WNDcheckCursor( hWnd, hittest );
return 1L;

WM_SHOWSIZEGRIP

The WM_SHOWSIZEGRIP message is sent when the HWND module needs to query the window as regards to properties of the grow box within the client area of the window. If a window has both horizontal and vertical scrollbars, the grow box is displayed in the non-client area, and no WM_SHOWSIZEGRIP message is generated.

Parameters:

WND_GRIP_ALLOWED
Is the grow box allowed to be in the client area. Return one of the following:

WND_GRIP_ALLOW_NO No grow box is allowed.
WND_GRIP_ALLOW_YES The grow box is allowed.
WND_GRIP_ALLOW_STOP The grow box is allowed but not visible.

Note: Under MacOS, the return value is ignored. A grow box is always enforced, if the MacOS window has been given the grow box property.

WND_GRIP_GET_RECT
Position the supplied grow box rect. lParam points to a qrect which is already positioned for the bottom right corner of the client area. The window can adjust this rectangle, so the grow box is painted in the correct location within the client area of the window (DO NOT alter the width or height of the rect). WND_GRIP_GET_RECT should return the same value which was returned by WND_GRIP_ALLOWED.

WND_GRIP_CHANGED
The grow box is removed or added to the window.

Returns:

For WND_GRIP_ALLOWED return one of the WND_GRIP_ALLOW_xxx flags.

For WND_GRIP_GET_RECT return the same value which is returned by WND_GRIP_ALLOWED.

For WND_GRIP_CHANGED always return 0.

Example:

// this window has no scrollbars, so it needs to implement the WM_SHOWSIZEGRIP
// messages if it wants to allow a growbox in its client area
switch ( wParam )
{
  case WND_GRIP_ALLOWED:
  {
    return WND_GRIP_ALLOW_YES;
  }
  case WND_GRIP_GET_RECT:
  {
    // rect is already positioned for bottom right corner of the client
    // area, but you want to bring it in an additional 2 pixels to give
    // as room for our special border
    qrect* theRect = (qrect*)lParam;
    GDIoffsetRect( theRect, -2, -2 );
    return WND_GRIP_ALLOW_YES;
  }
  case WND_GRIP_CHANGED:
  {
    // get the growbox rect so we can invalidate it. Note:
    // WNDgetGrowBoxRect generates a WND_GRIP_GET_RECT message.
    qrect theRect; WNDgetGrowBoxRect( hWnd, &theRect );
    WNDinvalidateRect( hWnd, &theRect );
  }
}

WM_SHOWWINDOW

The WM_SHOWWINDOW message is sent when the function WNDshowWindow is called to show or hide a window.

Parameters:

Returns:

An external component should return zero if it processes this message.

Example:

// this example only allows the window to be shown if the member mVisible is qtrue.
if ( wParam && !mVisible ) return 0L;
return 1L;

WM_TIMER

The WM_TIMER message is sent to the WndProc function of a window after each interval which was specified when the WNDsetTimer function was called to install the timer.

Note: Because WM_TIMER messages are only generated if no other messages are on the message queue, the accuracy of the intervals at which they are generated cannot be guaranteed, that is, while Omnis is busy, no WM_TIMER messages are generated.

Parameters:

Returns:

Always return zero.

Example:

// this example implements a typical about box behavior by destroying the window
// after it has been around for 5 seconds or on a mouse button up. While the mouse
// button is held down, the window stays around.
switch ( message )
{
  case WM_PAINT:
  {
    // leave the window around for 5 seconds after the first paint
    static qbool sTimerSet = qfalse;
    WNDpaintStruct paintInfo;
    WNDbeginPaint( hWnd, &paintInfo );
    // paint the window
    WNDendPaint( hWnd, &paintInfo );
    if ( ! sTimerSet )
    {
      WNDsetTimer( hWnd, 1, 5000 );
      sTimerSet = qtrue;
    }
    return 0L;
  }
  case WM_TIMER:
  {
    // 5 seconds later destroy the window if the mouse button
    // is not held down
    WNDkillTimer( hWnd, 1 );
    if ( !WNDmouseLeftButtonDown() )
    {
      WNDdestroyWindow( hWnd );
    }
    return 0L;
  }
  case WM_LBUTTONDOWN:
  {
    return 0L;
  }
  case WM_LBUTTONUP:
  {
    // always destroy the window on a button up
    WNDdestroyWindow( hWnd );
    return 0L;
  }
}

WM_TOOLTIP

The WM_TOOLTIP message is sent to the xcomp procedure. The xcomp should check if the wparam is a TIP_GETTIP. The xcomp can use the TIPinfo* by casting the lparam:

TIPinfo* tipInfo = (TIPinfo*)lParam;

Then use the TIPinfo* structure to assign its str255 mToolTipText member.

You can use ECOsetToolTipText with the TIPinfo* as a parameter and set a fldval as the tooltip, meaning it can be longer than 255 characters.

Parameters:

WM_VSCROLL

See WM_HSCROLL.

WM_WINDOWPOSCHANGED

The WM_WINDOWPOSCHANGED message is sent to a window whose size, position, visibility, or z-order has changed as a result of a call to WNDsetWindowPos or another window-management function.

Parameters:

Returns:

Always return 1.

Example:

// this example resets the scroll ranges if the width or height of the window has been changed
WNDwindowPosStruct* windowPosInfo = (WNDwindowPosStruct*)lParam;
if ( ( windowPosInfo->flags & SWP_NOSIZE ) == 0 )
{
  qdim min, max, page;
  WNDgetScrollRange( windowPosInfo->hwnd, SB_HORZ, &min, &max, &page );
  page = windowPosInfo->cx;
  WNDsetScrollRange( windowPosInfo->hwnd, SB_HORZ, min, max, page );
  WNDgetScrollRange( windowPosInfo->hwnd, SB_VERT, &min, &max, &page );
  page = windowPosInfo->cy;
  WNDsetScrollRange( windowPosInfo->hwnd, SB_HORZ, min, max, page );
}
return 1L;

WM_WINDOWPOSCHANGING

The WM_WINDOWPOSCHANGING message is sent to a window whose size, position, visibility, or z-order is about to be changed as a result of a call to WNDsetWindowPos or another window-management function.

Parameters:

Returns:

An external component should return zero if it processes this message.

During this message, modifying any of the values in the WNDwindowPosStruct structure affects the new size, position, or z-order. An external component can prevent changes to the window by setting or clearing the appropriate bits in the flags member of the WNDwindowPosStruct structure.

Example:

// this example prevents the window being sized outside a specific size range
WNDwindowPosStruct* windowPosInfo = (WNDwindowPosStruct*)lParam;
if ( ( windowPosInfo->flags & SWP_NOSIZE ) == 0 )
{
  if ( windowPosInfo->cx < 100 )
    windowPosInfo->cx = 100;
  else if ( windowPosInfo->cx > 400 )
    windowPosInfo->cx = 400;
  if ( windowPosInfo->cy < 80 )
    windowPosInfo->cy = 80;
  else if ( windowPosInfo->cy > 200 )
    windowPosInfo->cy = 200;
}
return 1L;

Functions

HIWORD()

qword2 HIWORD( qword4 pVal )

Returns the high order word of the given long value.

LOWORD()

qword2 LOWORD( qword4 pVal )

Returns the low order word of the given long value.

WNDabortMouseCapture()

void WNDabortMouseCapture()

Aborts mouse capture as a result of some user action elsewhere in the process, e.g. CMND+N to open a new window in a web browser. Sends WM_CAPTUREABORT to the hwnd with the mouse capture, and then releases the mouse capture.

WNDaddWindowComponent()

HWND WNDaddWindowComponent( HWND pHwnd, qulong pComponent, qulong pStyle, qulong pExStyle, WNDprocClass* pObject, qdim pSize OR qrect pRect, WNDborderSpec* pBorderSpec )

Adds a new window component to the specified parent. Adding components may cause the position of other components to be altered, and generates WM_PAINT messages if these components are visible.

Example:

// in this example a window adds a menu and client component to it self
// when it is first created
qlong cMyWndProcClass::WndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam, LPARAM uParam )
{
  switch ( message )
  {
    case WM_CREATE:
    {
      qulong style = WS_CHILD | WS_CLIPSIBLINGS | WS_CLIPCHILDREN | WS_VISIBLE;
      WNDborderStruct border( WND_BORD_EMBOSSED );
      mMenuHwnd = WNDaddWindowComponent( hWnd, WND_WC_MENUBAR, style, WND_DRAGBORDER, this, 20, &border );
      style |= WS_HSCROLL | WS_VSCROLL;
      mClientHwnd = WNDaddWindowComponent( hWnd, WND_WC_CLIENT, style, WND_DRAGBORDER, this, 0, &border );
      return 0L;
    }
  }
  return DefWindowProc( hwnd, message, wparam, lparam );
}

WNDbeginPaint()

WNDprocClass* WNDbeginPaint( HWND pHwnd, WNDpaintStruct* pPaintStruct )

Prepares the given window for painting and fills a WNDpaintStruct structure with information about the painting. The WNDbeginPaint function automatically sets the visual region of the device context to exclude any area outside the update region. The update region is set by the WNDinvalidateRect or WNDinvalidateRgn function and by the HWND module after sizing, moving, creating, scrolling, or any other operation that affects the client area. If the update region is marked for erasing, WNDbeginPaint sends a WM_ERASEBKGND message to the window.

If the caret is in the area to be painted, WNDbeginPaint automatically hides the caret to prevent it from being erased.

Warning: This function must only be called in response to a WM_PAINT or WM_CHILDPAINT message, and must always be followed by a call to WNDendPaint before the next call to WNDbeginPaint (must NOT be nested).

Example:

See WM_PAINT, WM_TIMER, WNDredrawChildren.

See also WNDendPaint, WNDstartDraw, WNDendDraw, WM_PAINT, WM_NCPAINT, WM_ERASEBKGND, WM_CHILDPAINT, WNDpaintStruct, HDC

WNDbringWindowToTop()

qbool WNDbringWindowToTop( HWND pHwnd )

Brings the given child window to the top of a stack of overlapping windows. The WNDbringWindowToTop function should be used to uncover any window that is partially or completely obscured by any overlapping windows.

Calling this function is similar to calling the WNDsetWindowPos function to change a window's position in the Z-order.

Example:

// in this example a window brings itself to the top when it is being clicked on
qlong cMyWndProcClass::WndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam, LPARAM uParam )
{
  switch ( message )
  {
    case WM_LBUTTONDOWN:
    {
      WNDbringWindowToTop( hWnd );
      return 0L;
    }
  }
  return DefWindowProc( hwnd, message, wparam, lparam );
}

See also WNDsetWindowPos

WNDchangeComponentId()

qbool WNDchangeComponentId( HWND pHwnd, qulong pComponent )

Changes the component type of the given window. All the usual restrictions apply, that is, only one of each component type can be present in the same parent window at any one time.

Example:

WNDchangeComponentId( myComponentHwnd, WND_WC_CLIENT );

See also WNDaddWindowComponent, WNDremoveWindowComponent

WNDcheckCursor()

void WNDcheckCursor( HWND pHwnd, qword2 pHittest )

Checks the window to see if the cursor needs changing and changes it if necessary. This function should be called when a WM_SETCURSOR message is received.

Example:

See WM_SETCURSOR.

See also WNDsetCursor, WNDgetCursor, WNDsetWindowCursor, WNDgetWindowCursor, WNDclipCursor, WNDgetCursorPos, WNDsetCursorPos, WM_SETCURSOR

WNDchildPaintBegin() (v3.1)

void* WNDchildPaintBegin( void* pChildPaintInfo, HWND pParentHwnd, HDC pParentHdc, HWND pChildHwnd, qrect* pChildRect, qrect* pClipRect )

This function allows you to paint child windows inside the parent DC during the parents paint at a location specified by the parent. This is useful for complex lists which use embedded controls to paint the list data (i.e. Omnis Complex Grid). Such a list will need to paint the same child multiply times, once for every visible row of the list.

You call WNDchildPaintBegin repeatedly for each child which requires painting. When the last child has been painted you must call WNDchildPaintEnd. You would repeat this for every row.

The children must be painted starting with the bottom most child, since visual regions of the children are ignored.

You should use GDIoffscreenPaintBegin and GDIoffscreenPaintEnd when painting each row, to avoid unwanted flicker while painting the children.

Example:

// start the parent update
WNDpaintStruct ps;
WNDbeginPaint( parentHwnd, &ps );
// prepare painting of rows
// for the benefit of the example we hard code the row height,
// and assume that the top of each child within each row is zero,
// and the left, right and bottom are correct
qlong rowHeight = 50;
qrect clientRect; WNDgetClientRect( parentHwnd, &clientRect );
qlong fstVisRow = 1;
qlong lstVisRow = ( clientRect.height() + rowHeight –1 ) / rowHeight;
qrect rowRect = clientRect; rowRect.bottom = rowHeight – 1;
void* offscreenInfo = 0;
HDC paintDC = ps.hdc;
// paint the rows
for ( qlong row = fstVisRow ; row<=lstVisRow ; row++ )
{
  // prepare the offscreen paint
  qrect paintRect = rowRect;
  qrect updRect = ps.rcPaint;
  void* offscreenInfo2 = GDIoffscreenPaintBegin( offscreenInfo, paintDC, paintRect, updRect );
  // if offscreenInfo2 == NULL this row doesn’t intersect the update rect
  // so we don’t need to paint anything
  if ( offscreenInfo2 )
  {
    offscreenInfo = offscreenInfo2;
    void* childInfo = 0;
    // erase the background prior to painting the children
    WNDdrawThemeBackground( parentHwnd, paintDC, &paintRect, WND_BK_CONTAINER );
    // get the bottom most child window
    HWND childHwnd = WNDgetWindow( parentHwnd, GW_CHILD );
    if ( childHwnd ) childHwnd = WNDgetWindow( parentHwnd, GW_HWNDLAST );
    // next through the children and paint them
    while ( childHwnd )
    {
      // calculate the childs rects
      qrect childUpdRect = updRect;
      qrect childRect; WNDgetWindowRect( childHwnd, &childRect );
      WNDmapWindowRect( HWND_DESKTOP, parentHwnd, &childRect );
      GDIoffsetRect( &childRect, -paintRect.left, paintRect.top-childRect.top );
      // prepare painting of child
      void* childInfo2 = WNDchildPaintBegin( childInfo, parentHwnd, paintDC, childHwnd, &childRect, &childUpdRect );
      // if childInfo2==NULL the child does not intersect the
      // childUpdRect and there is nothing to paint
      if ( childInfo2 )
      {
        childInfo = childInfo2;
        // paint the child
        WNDsendMessage( childHwnd, WM_PAINT, WPARAM(paintDC), 0 );
      }
      // get the next child, making the assumption that we only have
      // one level of children
      childHwnd = WNDgetWindow( childHwnd, GW_HWNDPREV );
    }
    // we have painted all children for this row, so we must finish off
    if (childInfo) WNDchildPaintEnd( childInfo );
  }
  // prepare for next row
  GDIoffsetRect( &rowRect, 0, rowHeight );
}
// we have painted all rows, so finish off offscreen paint
GDIoffscreenPaintEnd( offscreenInfo );
// finish the parent update
WNDendPaint( parentHwnd, &ps );

See also WNDchildPaintEnd, GDIoffscreenPaintBegin, GDIoffscreenPaintEnd

WNDchildPaintEnd() (v3.1)

void WNDchildPaintEnd( void* pChildPaintInfo )

This function completes the painting of child windows inside the parents DC. For a full description of WNDchildPaintBegin and WNDchildPaintEnd see WNDchildPaintBegin above.

See also WNDchildPaintBegin

WNDclipCursor()

void WNDclipCursor( qrect* pRect )

Clips the screen cursor to the specified rect, that is, the movement of the cursor is restricted to within the bounds of the rectangle.

Example:

See WM_NCLBUTTONDOWN.

See also WNDsetCursor, WNDgetCursor, WNDsetWindowCursor, WNDgetWindowCursor, WNDgetCursorPos, WNDsetCursorPos

WNDcreateCaret()

void WNDcreateCaret( HWND pHwnd, qdim pWidth, qdim pHeight )

Creates a new shape for the system caret and assigns ownership of the caret to the given window. The WNDcreateCaret function destroys the previous caret automatically, if any, regardless of which child window owns the caret. Once created, the caret is initially hidden. To show the caret, use the WNDshowCaret function. A child window should create a caret only when it has the input focus (see WM_FOCUSCHANGED).

Example:

See WM_FOCUSCHANGED.

See also WNDdestroyCaret, WNDgetCaretPos, WNDsetCaretPos, WNDhideCaret, WNDshowCaret, WM_FOCUSCHANGED

WNDcreateWindow()

HWND WNDcreateWindow( HWND pParentHwnd, qulong pStyle, qulong pExStyle, WNDprocClass* pObject, qrect* pRect, WNDborderStruct* pBorderSpec )

Creates a window of type WND_WC_FRAME. The new window becomes the top most window in its parent.

Note: For Omnis child windows to work correctly, WS_CHILD, WS_CLIPSIBLINGS, and WS_CLIPCHILDREN must always be specified. If WS_VISIBLE is specified, the window is made visible.

Example:

// this example subclasses the WNDprocClass for receiving messages for its
// windows and creates a window with an inset border, scrollbars and bottom
// and right floating properties so when the parent sizes, the new window
// sizes by the same amount
// the cMyWndProcClass declaration
class cMyWndProcClass : public WNDprocClass
{
  cMyWndProcClass() {} // default constructor
  ~cMyWndProcClass() {} // default destructor
  virtual qlong WndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam, LPARAM uParam );
};
// first instantiate the WNDprocClass
cMyWndProcClass myWndProc = new cMyWndProcClass();
// prepare for window creation
qrect myWRect( 10, 10, 100, 20 );
WNDborderStruct myBorder( WND_BORD_INSET );
// now create the window invisibly
HWND myHwnd = WNDcreateWindow
          (
            myParentHwnd,
            WS_CHILD | WS_CLIPSIBLINGS | WS_CLIPCHILDREN | WS_HSCROLL | WS_VSCROLL,
            WND_FLOAT_RIGHT | WND_FLOAT_BOTTOM,
            myWndProc,
            &myWRect,
            &myBorder
);
// WM_CREATE will have been sent by now, make the window visible
WNDshowWindow( myHwnd, SW_SHOW );

See also WNDaddWindowComponent, WNDdestroyWindow, WNDgetWindowComponent, WNDnextWindowComponent, WNDremoveWindowComponent, WM_CREATE

WNDdelay()

void WNDdelay( qlong pMilliSecs )

Delays program execution by the specified number of milliseconds.

Example:

See WNDgetCursor.

WNDdestroyCaret()

void WNDdestroyCaret( HWND pHwnd )
void WNDdestroyCaret()

Destroys the system caret. A child window should destroy the caret if it loses the input focus.

Note: External components should always specify the window parameter, to prevent destroying the caret if it is owned by another window.

Example:

See WM_FOCUSCHANGED.

See also WNDcreateCaret, WNDgetCaretPos, WNDsetCaretPos, WNDhideCaret, WNDshowCaret, WM_FOCUSCHANGED

WNDdestroyWindow()

qbool WNDdestroyWindow( HWND pHwnd )

Destroys the given window and all its children. When a window is destroyed, a WM_DESTROY message is sent to the window and all of its child windows. The window procedure can NOT prevent the windows from being destroyed.

Example:

if ( WNDdestroyWindow( myHwnd ) )
{
  // window has been destroyed
}
else
{
  // window has NOT been destroyed
}

See WM_TIMER.

See also WNDaddWindowComponent, WNDcreateWindow, WNDgetWindowComponent, WNDnextWindowComponent, WNDremoveWindowComponent, WM_DESTROY

WNDdragAcceptFiles()

void WNDdragAcceptFiles( HWND pHwnd, qbool pAccept )

Registers whether a window accepts dropped files.

WNDdrawThemeBackground() (v3.1)

qbool WNDdrawThemeBackground( HWND pHwnd, HDC pHdc, qrect* pRect, qulong pBKTheme )

Calling this function will erase the rectangle with the specified theme background.

  1. returns – qtrue if painting has taken place, otherwise returns qfalse.

Example:

See WM_ERASEBKGND

See also GWL_BKTHEME, WM_ERASEBKGND, WNDdrawThemeControl

WNDdrawThemeControl()

qbool WNDdrawThemeControl( HWND hWnd, HDC pHdc, qulong pType, qulong pFlags, qrect* pRect)

Draws the specified control using the systems current theme.

See also WNDdrawThemeBackground

WNDendDraw()

void WNDendDraw( HWND pHwnd, HDC pHdc )

Marks the end of painting in the given window. This function is required for each call to the WNDstartDraw function, but only after painting is complete.

WNDstartdraw and WNDendDraw can be used to paint a window without having received a WM_PAINT message.

Example:

See WNDredrawChildren, WNDgetWindowFromPt, WNDpaintBorder.

See also WNDstartDraw, WNDbeginPaint, HDC (GDI document)

WNDendDrawEx()

void WNDendDrawEx( HWND pHwnd, HDC pHdc )

Identical to WNDendDraw on non-macOS platforms.

On macOS this marks the end of drawing to the port in the same way as WNDendDraw but does not end a drawing block. This should be paired with a previous call to WNDstartDrawEx but this does not have to be in the same scope as that call. This allows drawing blocks to be defined separately. All drawing instructions defined in blocks between this call and the preceding WNDstartDrawEx call will be invoked.

Drawing Blocks

On macOS these define drawing instructions in the same scope between a pair of WNDstartDrawEx and WNDendDrawEx calls.

The start of a drawing block is defined using BLOCKSTART and the end of a drawing block using BLOCKEND(HDC), where HDC is the device context returned from the previous WNDstartDrawEx call. These calls are NOPs on non-macOS platforms.

These calls must be defined in the same scope or the compiler will report an error. There can be multiple drawing block pairs after a WNDstartDrawEx call. These are then terminated and the drawing blocks invoked with a call to WNDendDrawEx.

Example: (excerpt amended from Zoom control)

void tqfZoomIn::drawDesktopSelectRect( qpoint* pPoint )

omnis { HDC desktop = WNDstartDrawEx( HWND_DESKTOP ); BLOCKVAR qrect zoom = getZoomRect( pPoint ); // Mark this as a BLOCKVAR as it is passed by reference in the following drawing block. BLOCKSTART GDIdrawFocusRect( desktop,&zoom ); BLOCKEND(desktop) WNDendDrawEx( HWND_DESKTOP, desktop ); mLastMousePos = *pPoint; }

Note that code defining a drawing block can also be used by painting code used with a DC created by WNDbeginPaint and not by WNDstartDrawEx. In this case BLOCKEND will just run the drawing block instructions immediately. The same thing will happen with bitmap/offscreen based DC’s.

Example:

See WNDredrawChildren, WNDgetWindowFromPt, WNDpaintBorder.

See also WNDendDraw, WNDstartDraw, WNDstartDrawEx, WNDbeginPaint, HDC (GDI document)

WNDendPaint()

void WNDendPaint( HWND pHwnd, WNDpaintStruct* pPaintStruct )

Marks the end of painting in the given window. This function is required for each call to the WNDbeginPaint function, but only after painting is complete.

Warning: WNDbeginPaint and WNDendPaint must only be ever used in response to a WM_PAINT message.

Example:

See WM_PAINT, WM_TIMER, WNDredrawChildren.

See also WNDbeginPaint, WNDstartDraw, WNDendDraw, WNDpaintStruct

WNDenumChildWindows()

qbool WNDenumChildWindows( HWND pParentHwnd, WNDenumProc pEnumProc, LPARAM lParam )

Enumerates all child windows of the given window and calls the specified WNDenumProc function with the given lParam for each child.

Warning: Destroying the window which is currently being processed causes the system to crash. Changing the parent of a child window during the enumeration process may cause the child window not to be enumerated.

Example:

// this example sends a key message to all child windows of a window and
// stops the enumeration process once a window has accepted the key
// enumeration methods which are called for every child window
static qbool sSendKeyDown( HWND hWnd, LPARAM lParam )
{
  return (qbool) ( WNDsendMessage( hWnd, WM_KEYDOWN, 0, lParam != 0 );
  // note: returning qfalse stops enumeration
}
static qbool sSendKeyUp( HWND hWnd, LPARAM lParam )
{
  return (qbool) ( WNDsendMessage( hWnd, WM_KEYUP, 0, lParam ) != 0 );
  // note: returning qfalse stops enumeration
}
// the parent window receiving a key message
qlong cMyWndProcClass::WndProc( HWND hWnd, UINT message, WPARAM wParam, lParam, LPARAM uParam )
{
  switch ( message )
  {
    case WM_KEYDOWN:
    case WM_KEYUP:
    {
      qbool result;
      if ( message == WM_KEYDOWN )
        result = WNDenumChildWindows( hWnd, sSendKeyDown, lParam );
      else
        result = WNDenumChildWindows( hWnd, sSendKeyUp, lParam );
      // check if a child accepted the key message
      if ( result )
      {
        // NO child accepted the key
        return 1L;
      }
      else
      {
        // the key was accepted by one of the child windows
        return 0L;
      }
    }
  }
  return DefWindowProc( hwnd, message, wparam, lparam );
}

See also WNDgetWindow

WNDfloatChildren()

void WNDfloatChildren( HWND pHwnd, qdim pXOffset, qdim pYOffset )

Sizes or moves all floating child windows of the given parent window by the specified amounts. A child window is sized or moved only if it has the appropriate floating styles.

Note: Their should be no need to call this function from outside the HWND module. The HWND module calls this function automatically when a window sizes.

See also WNDsetWindowPos, WNDwindowPosStruct., WND_FLOAT_xxx, WND_NOFLOATCHILDREN, WM_WINDOWPOSCHANGING, WM_WINDOWPOSCHANGED

WNDgetBorderSpec()

void WNDgetBorderSpec( HWND pHwnd, WNDborderSpec* pBorderSpec )

Returns the windows border information.

Example:

// this example gets the border spec and changes the border color if it has a plain border
WNDborderSpec border;
WNDgetBorderSpec( myHwnd, &border );
if ( border.mBorderStyle == WND_BORD_PLAIN )
{
  border.mLineStyle.setColor( GDI_COLOR_QRED );
  WNDsetBorderSpec( myHwnd, &border, qtrue );
}

See also WNDsetBorderSpec, WNDborderSpec

WNDgetCapture()

HWND WNDgetCapture( qulong pFlags )

Returns the window which has the specified capture.

Example:

HWND keyCapture = WNDgetCapture( WND_CAPTURE_KEY );
HWND mouseCapture = WNDgetCapture( WND_CAPTURE_MOUSE );
qbool haveBothCaptures = qbool( myHwnd == keyCapture && myHwnd == mouseCapture );
// is the same as
qbool haveBothCaptures = qbool( WNDhasCapture( myHwnd, WND_CAPTURE_KEY ) && WNDhasCapture( myHwnd, WND_CAPTURE_MOUSE ) );

See also WNDsetCapture, WNDhasCapture, WNDreleaseCapture, WND_CAPTURE_xxx

WNDgetCaretPos()

void WNDgetCaretPos( qpoint* pPos )

Retrieves the system caret position in client coordinates of the associated window.

Example:

// this example makes sure the caret position is within the client area of the window
qpoint pt; WNDgetCaretPos( &pt );
qrect cRect; WNDgetClientRect( myHwnd, &cRect );
// the assumed width of the caret is 1.
cRect.right -= 1;
// the assumed height of the caret is 8
cRect.bottom -= 8;
if ( !GDIptInRect( &cRect, &pt ) )
{
  if ( pt.h < cRect.left ) pt.h = cRect.left;
  else if ( pt.h > cRect.right ) pt.h = cRect.right;
  if ( pt.v < cRect.top ) pt.v = cRect.top;
  else if ( pt.v > cRect.bottom ) pt.v = cRect.bottom
  WNDsetCaretPos( &pt );
}

See also WNDcreateCaret, WNDdestroyCaret, WNDsetCaretPos, WNDhideCaret, WNDshowCaret, WM_FOCUSCHANGED

WNDgetClientRect()

void WNDgetClientRect( HWND pHwnd, qrect* pRect )

Retrieves the coordinates of the windows client area.

Example:

See WM_NCLBUTTONDOWN, WM_SETCURSOR, WNDgetCaretPos, WNDgetWindowFromPt, WNDpaintBorder, WNDsetCursorPos.

See also WNDgetWindowRect

WNDgetCursor()

qshort WNDgetCursor()

Returns the id of the currently displayed screen cursor.

Example:

// this example changes the screen cursor for a number of
// seconds and restores it
qshort oldCursor = WNDgetCursor();
WNDsetCursor( WND_CURS_WATCH );
WNDdelay( 5000 ); // wait 5 seconds
WNDsetCursor( oldCursor );

See also WNDsetCursor, WNDgetCursorPos, WNDsetCursorPos, WNDclipCursor, WNDgetWindowCursor, WNDsetWindowCursor

WNDgetCursorPos()

void WNDgetCursorPos( qpoint* pPoint )

Returns the location of the cursors Hotpoint in screen coordinates.

Example:

See WM_NCLBUTTONDOWN.

See also WNDsetCursorPos, WNDclipCursor, , WNDsetCursor, WNDgetWindowCursor, WNDsetWindowCursor

WNDgetFloat()

qulong WNDgetFloat( HWND pHwnd )

Returns the floating properties of the given window.

Example:

// this example retrieves the floating properties of a window and switches off the bottom edge floating.
qulong float = WNDgetFloat( myHwnd );
float &= ~WND_FLOAT_BOTTOM;
WNDsetFloat( myHwnd, float );

See also WNDsetFloat, WNDcreateWindow, WND_FLOAT_xxx

WNDgetGrowBoxRect()

qbool WNDgetGrowBoxRect( HWND pHwnd, qrect* pRect )

Returns the rectangle of the grow box, if the given window owns the grow box, and the grow box is located within the client area of the window. The grow box only appears in the client area of a window if it owns the grow box and the window has no scrollbars. This function is useful if a control wants to take into account the position of a possible grow box within the client area, for example, in the case of a status bar control, the panes sizes are restricted. Calling this function generates a WM_SHOWSIZEGRIP message for the given window.

Example:

See WM_SHOWSIZEGRIP

See also WM_SHOWSIZEGRIP

WNDgetMainHwnd() (Win & Linux only)

HWND WNDgetMainHwnd()

This core callback method returns the value of mHwnd; a handle to the Omnis root window. This method was added for use with worker objects, and specifically for use in subscribing client delegates to a central timer object. The resulting HWND is used when starting/stopping the timer using the WNDsetTimer() & WNDkillTimer() callbacks. It is unlikely to be of use generally (and is not supported on macOS), since any messages your component will normally respond to are supplied with an HWND parameter.

Example:

if(!_timerID) //create timer if it does not exist
{
  #if defined(ismacosx)
    _timerID = WNDsetTimer(NULL, 0, TIMER_MS, _omnisTimer);
  #else
    _timerID = WNDsetTimer(WNDgetMainHwnd(), 0, TIMER_MS, _omnisTimer);
  #endif
}

WNDgetMinMaxInfo()

void WNDgetMinMaxInfo( HWND pHwnd, WNDminMaxInfo* pMinMaxInfo )

Calculates the basic minimum tracking sizes of the given window by querying all child windows and adding their minimum tracking sizes depending on the child’s component type. WM_GETMINMAXINFO messages are generated for all child windows, and if these child windows call WNDgetMinMaxInfo, further WM_GETMINMAXINFO messages are generated for their children, and so on. All windows which are known to possibly contain child windows must implement the WM_GETMINMAXINFO message and must call this function prior to applying any additional restrictions to the minimum or maximum tracking sizes.

Example:

See WM_GETMINMAXINFO.

See also WM_GETMINMAXINFO

WNDgetOS()

qbool WNDgetOS( HWND pHwnd, qlong pSelector, qlong pLngValue )

Returns or manipulates platform specific information about a window. What information is returned depends on the selector. All information is written to the given buffer.

This can be one of the following:

GOS_WINDOW (Mac OS only)

Retrieves the MacOS window port of the given HWND.

Example:

CGrafPtr macGrafPtr;
WNDgetOS( myHwnd, GOS_WINDOW, (qlong)&macGrafPtr );

GOS_EVENT (Mac OS only)

Retrieves the MacOS event record for the currently executing window message.

Example:

EventRecord ev;
WNDgetOS( NULL, GOS_EVENT, &ev );

GOS_REGION (Mac OS only)

Retrieves the given window’s requested visual region. There are additional modifiers which can be added to the selector. These are:

WND_CLIENT - returns the visual region of the client area.
WND_FRAME - returns the visual region of the non-client and client area.
WND_EXCLUDE_CLIENT - can be used together with WND_FRAME to get the visual region of the non-client area only.
WND_EXCLUDE_SIBLINGS - if specified, all overlapping sibling windows are subtracted from the visual region.
WND_EXCLUDE_CHILDREN - if specified, all child window regions are subtracted from the visual region.
WND_LOCAL - if specified, the region is local to the non-client or client area depending on which was requested. If not specified the region is local to the MacOS window’s port.
WND_INTERSECT_MAC_VISUAL - if specified, the visual region is intersected with the visual region of the HWND’s MacOS window.
WND_EXCLUDE_FOCUS (V3.2) – if specified, the visual region does not include the area covered by the Mac OS focus rectangle.

Example:

// the region handle must be allocated by the caller
RgnHandle rgn = NewRgn();
// the next line returns the true visual region of the non-client
// and client area as the window can be seen on screen.
// The region is local to the MacOS window’s port.
WNDgetOS( myHwnd, GOS_REGION | WND_FRAME | WND_EXCLUDE_SIBLINGS |
WND_EXCLUDE_CHILDREN | WND_INTERSECT_MAC_VISUAL, (qlong)rgn );
// the next line returns the true visual region of the client
// area as can be seen on screen, but includes all areas occupied
// by the windows children. The region is local to the MacOS
// window’s port.
WNDgetOS(myHwnd, GOS_REGION | WND_CLIENT | WND_EXCLUDE_SIBLINGS |
WND_INTERSECT_MAC_VISUAL, (qlong)rgn );
// do NOT forget to dispose of the region when finished
DisposeRgn( rgn );

GOS_MACOS8 (Mac OS only)
Returns 1 if system is version 8 or above.

GOS_OFFSETHWNDS (Mac OS only)
This will offset the given HWND and its children by the qpoint pointed to by pLngValue. No painting takes place. This is useful for 3rd part plug-ins or applications which use our GDI and HWND dll to implement HWNDs. This selector should be called when the Macintosh window has been scrolled, and the HWND containers need to be repositioned in the port without causing any invalidation.

Example:

qpoint pt(0,20);
WNDgetOS( theTopHwnd, GOS_OFFSETHWNDS, (qlong)&pt );

GOS_CLIPHWNDS (Mac OS only)
This will clip the given HWND and its children to the given rectangle which must be local to the Macintosh port to which the HWND belongs. This is useful for 3rd part plug-ins or applications which use our GDI and HWND dll to implement HWNDs. The selector should be called to prevent HWNDs painting over areas in the Mac port which they are not to paint in.

Example:

qrect r(0,0,400,300);
WNDgetOS( theTopHwnd, GOS_CLIPHWNDS, (qlong)&r );

WNDgetParent()

HWND WNDgetParent( HWND pHwnd )

Returns the parent window of the given window.

Note: WNDgetParent does NOT return parent windows if their parent window is HWND_MAINWINDOW. These windows are instantiated from Omnis window classes and are private to Omnis, no direct support is given to access these windows (see WNDgetOS). NULL is returned instead.

Example:

See WM_NCLBUTTONDOWN, WNDupdateWindow.

See also WNDsetParent

WNDgetScrollPos()

void WNDgetScrollPos( HWND pHwnd, qshort pWhich, qdim* pPos )

Retrieves the current scroll position of the given window and scrollbar.

Note: Querying a vertical or horizontal header component returns the appropriate scroll position from the client component.

Example:

See WM_HSCROLL.

See also WNDsetScrollPos, WNDsetScrollRange, WNDgetScrollRange

WNDgetScrollRange()

void WNDgetScrollRange( HWND pHwnd, qshort pWhich, qdim* pMin, qdim* pMax, qdim* pPage )

Retrieves the scroll range and page size of the given window and scrollbar.

Note: Querying a vertical or horizontal header component returns the appropriate scroll range and page size from the client component. The maximum range includes the page size as specified by WNDsetScrollRange. In order to find the true range of scroll positions you must subtract pPage from the pMax value.

Example:

See WM_HSCROLL, WM_WINDOWPOSCHANGED.

See also WNDsetScrollPos, WNDgetScrollPos, WNDsetScrollRange

WNDgetThemeColor()

qcol WNDgetThemeColor(qulong pType, qulong pFlags, qulong pPropId)

Returns the color of the specified attribute when using the specified theme and state information. Constants are defined in hwnd.he.

Example:

qcol textColor = textSpec().mTextColor;
if (WND_BORD_CTRL_GROUPBOX == border.mBorderStyle && gmain.isXP() && GDI_COLOR_WINDOWTEXT == textColor && !gmain.isVista() )
{
  textColor = WNDgetThemeColor(THEME_GROUPBOX, THEME_CONTROL_NORMAL, THEME_COLOR_TEXTCOLOR);
  if (GDI_COLOR_QDEFAULT == textColor)
    textColor = GDI_COLOR_ACTIVECAPTION;
}

WNDgetThemeState()

qulong WNDgetThemeState(HWND hWnd)

Returns flags describing state information about the window’s theme. State flags are defined in hwnd.he.

WNDgetThemeControlSize()

qbool WNDgetThemeControlSize(HWND hWnd,HDC pHdc,qulong pType,qulong pFlags,qpoint* pSize)

Returns the size coordinates of the specified themed control. Types and flags are defined in hwnd.he

Example:

qpoint size;
if (WNDgetThemeControlSize(0, pHdc, THEME_STATUS, THEME_CONTROL_DEFAULT, &size))
{ //..}

WNDgetUpdateRgn()

void WNDgetUpdateRgn( HWND pHwnd, qrgn* pRgn )

Returns the update region of the given window. This function should only be called during WM_PAINT and WM_CHILDPAINT messages prior to calling WNDbeginPaint (calling WNDbeginPaint clears the update region of the window). Calling it at any other time may not return the correct region.

Example:

See WNDredrawChildren.

See also WNDbeginPaint, WM_PAINT, WM_CHILDPAINT

WNDgetWindow()

HWND WNDgetWindow( HWND pHwnd, UINT pRelationFlag )

Retrieves the related window of the given window.

Example:

// this example steps through all immediate children of the window.
HWND curChild = WNDgetWindow( myHwnd, GW_CHILD );
while ( curChild )
{
  curChild = WNDgetWindow( curChild, GW_HWNDNEXT );
}

See also WNDenumChildWindows, WNDgetWindowComponent, WNDnextWindowComponent, GW_xxx

WNDgetWindowComponent()

HWND WNDgetWindowComponent( HWND pHwnd, qulong pComponent )

Returns the specified component of the given window.

Example:

// this example retrieves the client component of a window
HWND clientComp = WNDgetWindowComponent( myHwnd, WND_WC_CLIENT );

See also WNDgetWindow

WNDgetWindowCursor()

qshort WNDgetWindowCursor( HWND pHwnd )

Returns the cursor id which is associated with the given window.

Example:

// this example changes the window’s cursor if the current cursor
// is not set, that is, is equal to WND_CURS_DEFAULT.
if ( WNDgetWindowCursor( myHwnd ) == WND_CURS_DEFAULT )
{
  WNDsetWindowCursor( myHwnd, WND_CURS_NOGO );
}

See also WNDsetWindowCursor, WNDcheckCursor, WM_SETCURSOR

WNDgetWindowFromPt()

qbool WNDgetWindowFromPt( HWND* pHwnd, qword2* pHitTest, qpoint* pPoint )

Takes a global point local to HWND_DESKTOP and locates the window that is underneath the point.

Example:

// this example displays info about the hwnd the mouse is over if the user
// clicks in the client area of this window and than drags around the screen
// while holding down the mouse button
static HWND lastHwndUnder = NULL;
qlong cMyWndProcClass::WndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam, LPARAM uParam )
{
  switch ( message )
  {
    case WM_LBUTTONDOWN:
    {
      WNDsetCapture( hWnd, WND_CAPTURE_MOUSE );
      return 0L;
    }
    case WM_MOUSEMOVE:
    {
      if ( WNDhasCapture( hWnd, WND_CAPTURE_MOUSE ) )
      {
        qpoint pt; WNDmakePoint( lParam, &pt );
        HWND hwndUnder = NULL;
        qword2 hittest;
        str255 txt;
        WNDmapWindowPoint( hWnd, HWND_DESKTOP, pt );
        if ( WNDgetWindowFromPt( &hwndUnder, &hittest, pt ) )
        {
          qrect wRect; WNDgetWindowRect( hwndUnder, &wRect );
          str15 num;
          txt = str255(“Left=$ ; Top=$ ; Right=$ ; Bottom=$”);
          stri( wRect.left, num ); txt.insertStr( num );
          stri( wRect.top, num ); txt.insertStr( num );
          stri( wRect.right, num ); txt.insertStr( num );
          stri( wRect.bottom, num ); txt.insertStr( num );
        }
        if ( hwndUnder != sLastHwndUnder )
        {
          sLastHwndUnder = hwndUnder;
          HDC dc = WNDstartDraw( hWnd );
          qrect cRect; WNDgetClientRect( hWnd, &cRect );
          GDIsetTextColor( dc, GDI_COLOR_WINDOW );
          GDIfillRect( dc, &cRect, GDIgetStockBrush( BLACK_BRUSH ) );
          GDIsetTextColor( dc, GDI_COLOR_WINDOWTEXT );
          GDIdrawText( dc, 0, 0, &txt[1], txt[0], jstLeft );
          WNDendDraw( hWnd, dc );
        }
      }
      return 0L;
    }
    case WM_LBUTTONUP:
    {
      if ( WNDhasCapture( hWnd, WND_CAPTURE_MOUSE ) )
      {
        WNDreleaseCapture( WND_CAPTURE_MOUSE );
      }
      return 0L;
    }
  }
  return DefWindowProc( hwnd, message, wparam, lparam );
}

WNDgetWindowLong()

qulong WNDgetWindowLong( HWND pHwnd, qlong pOffset )

Retrieves style and type information about a window.

Example:

// this example switches of the scrollbars of the window
qulong style = WNDgetWindowLong( myHwnd, GWL_STYLE );
style &= ~(WS_HSCROLL | WS_VSCROLL);
WNDsetWindowLong( myHwnd, GWL_STYLE, style );

See also WNDsetWindowLong, WNDcreateWindow, WS_xxx ( styles ), WND_xxx ( extended styles ), WND_WC_xxx ( component ids )

WNDgetProcInst()

WNDprocClass* WNDgetProcInst( HWND pHwnd )

Returns a pointer to the WNDprocClass instance which is associated with the given window.

Example:

// this example creates a number of child windows which have their own
// WNDprocClass instance. On a delete key message the parent window
// destroys all child windows.
class cChildWndProcClass: public WNDprocClass
{
  cChildWndProcClass() {}
  ~ cChildWndProcClass() {}
  virtual qlong WndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam, LPARAM uParam );
}

qlong cParentWndProcClass::WndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam, LPARAM uParam )
{
  switch ( message )
  {
    case WM_CREATE:
    {
      // ** create the child windows **
      // first instantiate the WNDprocClass
      cChildWndProcClass* childWndProc = new cChildWndProcClass();
      // prepare for first child creation
      qrect childWRect( 10, 10, 100, 20 );
      WNDborderStruct childBorder( WND_BORD_INSET );
      // now create the first child window (we do not need to
      // remember the HWND)
      WNDcreateWindow
       (
          hWnd,
          WS_CHILD | WS_CLIPSIBLINGS | WS_CLIPCHILDREN,
          0,
          childWndProc,
          &childWRect,
          &childBorder
        );
        // prepare for second child creation
        childWRect.top += 40;
        // now create the second child window
        WNDcreateWindow
        (
          hWnd,
          WS_CHILD | WS_CLIPSIBLINGS | WS_CLIPCHILDREN,
          0,
          childWndProc,
          &childWRect,
          &childBorder
        );
        return 0L;
      }
      case WM_KEY:
      {
        qkey* key = (qkey*)lParam;
        vchar vch = key->getVChar();
        if ( vch == vcBack || vch == vcClear )
        {
          // ** delete the child windows **
          HWND curChild = WNDgetWindow( hWnd, GW_CHILD );
          while ( curChild )
          {
            // first get the WNDprocClass of the child
            // first get the WNDprocClass of the child
            cChildWndProcClass* childWndProc = (cChildWndProcClass*) WNDgetProcInst( curChild );
            // first get the WNDprocClass of the child
            // delete the childWndProc, but set the WNDprocClass in
            // the window to NULL first
            WNDsetProcInst( curChild, NULL );
            delete childWndProc;
            // destroy the window
            WNDdestroyWindow( curChild );
            // get the next child, always start at the top again
            curChild = WNDgetWindow( hWnd, GW_CHILD );
          }
          return 0L;
        }
        return 1L;
      }
    }
  }
  return ( DefWindowProc( hWnd, message, wParam, lParam ) );
}

See also WNDprocClass, WNDsetProcInst, WNDcreateWindow, WNDaddWindowComponent

WNDgetWindowRect()

void WNDgetWindowRect( HWND pHwnd, qrect* pRect )

Retrieves the global coordinates (local to HWND_DESKTOP) of the window.

Example:

See WNDredrawChildren.

See also WNDgetClientRect

WNDhasCapture()

qbool WNDhasCapture( HWND pHwnd, qulong pFlags )

Returns qtrue if the given window has the specified capture.

Example:

See WM_LBUTTONxxx, WNDgetCapture, WNDgetWindowFromPt.

See also WNDgetCapture, WNDsetCapture, WNDreleaseCapture, WND_CAPTURE_xxx

WNDhideCaret()

void WNDhideCaret()

Hides the system caret if it is currently visible, and increments the caret’s hidden count. If this function is called more than once before calling WNDshowCaret, it takes the same number of calls to WNDshowCaret, to make the caret visible again.

Example:

WNDhideCaret();

See also WNDcreateCaret, WNDdestroyCaret, WNDgetCaretPos, WNDsetCaretPos, WNDshowCaret, WM_FOCUSCHANGED

WNDinflateBorderRect()

void WNDinflateBorderRect( HWND pHwnd, qrect* pRect, WNDborderStruct* pBorderSpec )

This function is the reverse of WNDinsetBorderRect. Inflates the supplied rectangle by the left, top, right, and bottom by the amount which is required for the specified border information ( the amount which the border requires to paint ). For example, if the border was of type WND_BORD_INSET the rectangle would be inflated by two pixels on all sides.

For custom borders (WND_BORD_CUSTOM) the HWND module sends a WM_BORDCALCRECT message to the WndProc function of the given window.

Example:

See WNDpaintBorder.

See also WNDborderStruct, WNDdrawBorder, WNDinsetBorderRect

WNDinsetBorderRect()

void WNDinsetBorderRect( HWND pHwnd, qrect* pRect, WNDborderStruct* pBorderSpec )

Reverse of WNDinflateBorderRect.

Insets the supplied rectangle by the left, top, right, and bottom by the amount which is required for the specified border information ( the amount which the border requires to paint ). For example, if the border was of type WND_BORD_INSET the rectangle would be inset by two pixels on all sides.

For custom borders (WND_BORD_CUSTOM) the HWND module sends a WM_BORDCALCRECT message to the WndProc function of the given window.

Example

See WNDpaintBorder.

See also WNDborderStruct, WNDdrawBorder, WNDinflateBorderRect

WNDinvalidateFrame()

void WNDinvalidateFrame( HWND pHwnd )

Adds the non-client area of the given window to the windows update region. WM_NCPAINT messages are generated as a result of this call.

Example:

WNDinvalidateFrame( myHwnd );

See also WNDinvalidateRect, WNDinvalidateRgn

WNDinvalidateRect()

void WNDinvalidateRect( HWND pHwnd, qrect *pRect )

Adds the given rectangular area within the client area of the given window to the windows update region. WM_PAINT messages are generated as a result of this call.

Example:

See WM_SHOWSIZEGRIP.

See also WNDinvalidateRgn, WNDinvalidateFrame

WNDinvalidateRgn()

void WNDinvalidateRgn( HWND pHwnd, qrgn *pRgn )

Adds the given region within the client area of the given window to the windows update region. WM_PAINT messages are generated as a result of this call.

Example:

// this example invalidates to rectangular areas in the client area of the
// window in one call to WNDinvalidateRgn
qrgn rgn1, rgn2;
GDIsetRectRgn( &rgn1, 10, 10, 50, 20 );
GDIsetRectRgn( &rgn2, 10, 50, 80, 60 );
GDIrgnOr( &rgn1, &rgn1, &rgn2 );
WNDinvalidateRgn( myHwnd, &rgn1 );

See also WNDinvalidateRect, WNDinvalidateFrame

WNDisBorderExternal() (v3.1)

qbool WNDisBorderExternal( HWND pHwnd, qshort pBorderStyle )

This function checks if the given border style will be drawn outside the HWNDs frame. This is only true for some borders on Mac OSX.

WNDisPaintInProgress()

qbool WNDisPaintInProgress()

Returns qtrue if a paint is currently in progress, qfalse otherwise.

Example:

if (mHWnd)
{
  setPicturesScrollRange();
  if (!WNDisPaintInProgress())
  {
    WNDinvalidateRect(mHWnd,NULL);
    WNDupdateWindow(mHWnd);
  }
}

WNDisVistaTheme()

qulong WNDisVistaTheme()

Returns THEME_STATE_xxx flags describing the Windows Vista theme being used by the operating system. This depends whether the component is running under Vista and whether Vista is running in Classic mode or not. Currently, if Windows Vista is using themes, WNDisVistaTheme() returns the THEME_STATE_ACTIVE and THEME_STATE_HOTACTIVE flags. Otherwise, THEME_STATE_NOTACTIVE is returned.

Example:

mIsVista = (qbool) (WNDisVistaTheme() != 0);

WNDisWindowVisible()

qbool WNDisWindowVisible( HWND pHwnd )

Returns the current visibility state of the given window. It only returns qtrue if the window is visible on screen (the WS_VISIBLE flag is set for it self and all of the windows parents) although it may be hidden by overlapping sibling windows. If it is required to test the WS_VISIBLE style of a window, use the WNDgetWindowLong function.

Example:

// in this example, the window redraws itself if it is truly visible, that is, all of its
// parents are also visible.
if ( WNDisWindowVisible( myHwnd ) )
{
  WNDredrawWindow( myHwnd, NULL, NULL, WND_RW_NCPAINT | WND_RW_PAINT | WND_RW_ERASE );
}

See also WS_VISIBLE, WNDgetWindowLong

WNDkillTimer()

qbool WNDkillTimer( HWND pHwnd, qushort pTimerId )

Removes the timer of the specified id from the given window.

Example:

See WM_TIMER.

See also WNDsetTimer, WM_TIMER

WNDmakeLong()

qlong WNDmakeLong( qpoint* pPoint )

Converts a qpoint and returns it as a long value. This function should be used when it is required to send a point in the lParam parameter of a message.

Example:

// this example sends a left mousedown and mouseup to a window
qpoint pt(10,10);
WNDsendMessage( myHwnd, WM_LBUTTONDOWN, 0, WNDmakeLong( &pt ) );
WNDsendMessage( myHwnd, WM_LBUTTONUP, 0, WNDmakeLong( &pt ) );

See also WNDmakePoint

WNDmakeLong() (v3.1)

qlong WNDmakeLong( qrect* pRect )

Converts a qrect and returns it as a long value. This function is used when setting the GWL_INFLATE_ALL and GWL_INFLATE_FRAME values of a HWND.

See also WNDmakeRect, GWL_INFLATE_ALL, GWL_INFLATE_FRAME

WNDmakeEnumWindowsProc ()

FARPROC WNDmakeEnumWindowsProc(WNDenumProc pEnumProc, HINSTANCE pInstance)

Returns a FARPROC which then can be passed to WNDenumChildWindows.

WNDmakePoint()

void WNDmakePoint( qlong pLongValue, qpoint* pPoint )

Takes a long value and converts it into a point which is returned in the pPoint parameter.

Example:

See WM_LBUTTONxxx, WM_NCLBUTTONDOWN, WNDgetWindowFromPt.

See also WNDmakeLong

WNDmakeRect() (v3.1)

void WNDmakeRect( qlong pLongValue, qrect* pRect )

Takes a long value and converts it into a rect which is returned in the pRect parameter. This function is used when getting the GWL_INFLATE_ALL and GWL_INFLATE_FRAME values of a HWND.

See also WNDmakeLong, GWL_INFLATE_ALL, GWL_INFLATE_FRAME

WNDmapWindowPoint()

void WNDmapWindowPoint( HWND pHwndFrom, HWND pHwndTo, qpoint* pPoint )

Converts or maps a point from a coordinate space relative to one window, to a coordinate space relative to another window.

Example:

See WNDgetWindowFromPt.

See also WNDmapWindowRect

WNDmapWindowRect()

void WNDmapWindowRect( HWND pHwndFrom, HWND pHwndTo, qrect* pRect )

The same as WNDmapWindowPoint except that it converts a qrect.

Example:

See WM_NCLBUTTONDOWN, WM_SETCURSOR, WNDredrawChildren, WNDsetCursorPos, WNDsetParent.

See also WNDmapWindowPoint

WNDmouseLeftButtonDown()

qbool WNDmouseLeftButtonDown()

Returns qtrue if the logical (not physical) left mouse button is held down at the time of the call to this function.

Example:

See WM_NCLBUTTONDOWN, WM_TIMER.

See also WNDmouseTrackLeftButton, WNDmouseRightButtonDown

WNDmouseRightButtonDown()

qbool WNDmouseRightButtonDown()

Returns qtrue if the logical (not physical) right mouse button is held down at the time of the call to this function.

Example:

// this example holds program execution while the right mouse button is held down
while ( WNDmouseRightButtonDown() ) ;

See also WNDmouseLeftButtonDown

WNDmouseTrackLeftButton() (v3.1)

qbool WNDmouseTrackLeftButton()

This function should be used to fix tight loop mouse tracking. The traditional way of sitting in a while loop while the left mouse button is down has adverse effects on some platforms like Mac OSX.

The while loop should now call WNDmouseTrackLeftButton which will free processor time while the mouse is not doing anything of interest. The function only returns to the caller, when the mouse has moved, or the button states have changed.

Example:

while ( WNDmouseTrackLeftButton() )
{
  // the button is still down and the mouse has moved
  // do your stuff
}

See also WNDmouseLeftButtonDown

WNDmoveWindow()

qbool WNDmoveWindow( HWND pHwnd, qdim pLeft, qdim pTop, qdim pWidth, qdim pHeight, qbool pRepaint )

Changes the position and size of the given window (the window’s rectangle) inside its parent window. The given coordinates must be local to the parent’s client area. WM_WINDOWPOSCHANGING and WM_WINDOWPOSCHANGED messages are sent as a result of this call.

Example:

See WM_NCLBUTTONDOWN, WNDsetParent, WNDupdateWindow.

See also WNDgetWindowRect, WNDsetWindowPos

WNDnextWindowComponent()

HWND WNDnextWindowComponent( HWND pHwnd, HWND pComponentHwnd, qulong pComponent )

Returns the next component of the specified component(s) type. It is possible to next on more than one component type by specifying more than one component type in the pComponent flag.

Example:

// this example steps through all components of a window with the exception of the
// client component
HWND curComp = NULL;
qulong ids = WND_WC_MASK - WND_WC_CLIENT;
while ( curComp = WNDnextWindowComponent( myHwnd, curComp, ids ) )
{
  // do something
}

See also WNDaddWindowComponent, WNDnextWindowComponent, WNDremoveWindowComponent, WNDgetWindow, WND_WC_xxx

WNDpaintBorder()

void WNDpaintBorder( HWND pHwnd, HDC pHdc, qrect* pRect, WNDborderStruct* pBorderSpec )

Draws the given border style inside the given rectangle.

Example:

// this example paints a border inside the client area of a
// window and fills the remaining area
WNDborderStruct border( WND_BORD_BEVEL, 2, 4, 2 );
qrect cRect; WNDgetClientRect( myHwnd, &cRect );
HDC dc = WNDstartDraw( myHwnd );
WNDpaintBorder( NULL, dc, &cRect, &border );
WNDinsetBorderRect( NULL, &cRect, &border );
GDIsetTextColor( dc, GDI_COLOR_3DFACE );
GDIfillRect( dc, &cRect, GDIgetStockBrush( BLACK_BRUSH ) );
WNDendDraw( myHwnd, dc );

See also WNDborderStruct, WNDinflateBorderRect, WNDinsetBorderRect, WNDgetBorderSpec, WNDsetBorderSpec

WNDpostMessage() (v3.1)

qlong WNDpostMessage( HWND pHwnd, UINT message, WPARAM wParam, LPARAM lParam)

Posts the given message and parameters to the WndProc function associated with the given window. The message is placed in the systems event queue, and not executed immediately.

See also WNDsendMessage

WNDredrawChildren()

void WNDredrawChildren( HWND pHwnd, qrgn* pRgn )

Adds the intersection of the given region and each child’s visual region to the child’s update region. It generates a WM_CHILDPAINT message for the given parent window for each child which requires updating. All child windows are included, no matter how deep the child windows are nested.

The WNDredrawChildren function is specifically designed to allow complex controls, to manage the painting of their child controls. A complex control may want to display the same control in more than one location, displaying different data. The complex control can achieve this by always keeping the child windows invisible, and upon receiving a paint message for itself, the update region can be retrieved to paint the children.

Example:

// in this example a window controls the painting of its child windows:
static HWND sUpdHwnd;
static qrgn sUpdRgn;
qlong cMyWndProcClass::WndProc( HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam, LPARAM uParam )
{
  switch ( message )
  {
  case WM_PAINT:
  {
    WNDpaintStruct paintStruct;
    // retrieve the update region.
    // Note: region is local to hWnd
    WNDgetUpdateRgn( hWnd, &sUpdRgn );
    // clear the update region of this window
    WNDbeginPaint( hWnd, &paintStruct );
    WNDendPaint( hWnd, &paintStruct );
    // now paint the children. Set sUpdHwnd which is used
    // during WM_CHILDPAINT.
    sUpdHwnd = hWnd;
    WNDredrawChildren( hWnd, &sUpdRgn );
    // now fill in the remaining region with the background
    // and return
    HDC dc = WNDstartDraw( hWnd );
    GDIsetTextColor( dc, GDI_COLOR_3DFACE );
    GDIfillRgn( dc, &sUpdRgn, GDIgetStockBrush( BLACK_BRUSH ) );
    WNDendDraw( hWnd, dc );
    return 0L;
  }
  case WM_CHILDPAINT:
  {
    if ( lParam & WND_RW_PAINT )
    {
      // if lParam contains WND_RW_PAINT the child’s client area needs painting
      // Note: hWnd parameter now points to child window.
      // do any work required before painting the child, that is,
      // prepare the child’s data
      // make the child visible but do NOT course any further
      // redraws by specifying SWP_NOREDRAW. The same call can be
      // used to also move the child to a different location.
      WNDsetWindowPos( hWnd, NULL, 0, 0, 0, 0,
SWP_SHOWWINOW|SWP_NOREDRAW|SWP_NOSIZE|SWP_NOMOVE|SWP_NOZORDER );
      // now paint the child
      WNDsendMessage( hWnd , WM_PAINT, 0, 0 );
      // hide the child again
      WNDsetWindowPos( hWnd, NULL, 0, 0, 0, 0, SWP_HIDEWINOW|SWP_NOREDRAW|SWP_NOSIZE|SWP_NOMOVE|SWP_NOZORDER );
      // subtract the child’s rect from the static update region so
      // you can fill in the remaining area with the background of
      // the complex control when WNDredrawChildren returns.
      qrect wRect; qrgn wRgn;
      WNDgetWindowRect( hWnd, &wRect );
      WNDmapWindowRect( HWND_DESKTOP, sUpdHwnd, &wRect );
      GDIsetRectRgn( &wRgn, &wRect );
      GDIrgnDiff( &sUpdRgn, &sUpdRgn, &wRgn );
      // return zero so the window manager takes no further action
      return 0L;
    }
    else
    {
      // only the non-client area needs painting
      // return 1 to tell window manager to go ahead and paint the child normally
      return 1L;
    }
  }
}
return ( DefWindowProc( hWnd, message, wParam, lParam ) );

See also WM_PAINT

WNDredrawWindow()

void WNDredrawWindow( HWND pHwnd, qrect* pRect, qrgn* pRgn, qulong pFlags)

Redraws, invalidates or updates the given window.

Example:

See WM_NCLBUTTONDOWN, WNDisWindowVisible, WNDsetParent.

See also WNDupdateWindow, WNDinvalidateRect, WNDinvalidateRgn, WNDinvalidateFrame, WNDredrawWindowCO

WNDredrawWindowCO()

void WNDredrawWindowCO( HWND pHwnd, qrect* pRect, qrgn* pRgn, qulong pFlags, qulong pComponents)

Calls WNDredrawWindow for all specified components of the given window.

Example:

// this example redraws all components of a window with the exception of the
// client component
qulong ids = WND_WC_MASK - WND_WC_CLIENT;
qulong flags = WND_RW_NCPAINT | WND_RW_PAINT | WND_RW_ERASE;
WNDredrawWindowCO( myHwnd, NULL, NULL, flags, ids );

See also WNDredrawWindow, WND_WC_xxx (component ids)

WNDreleaseCapture()

void WNDreleaseCapture( qulong pFlags )

Releases the specified capture which was set previously by WNDsetCapture.

Example:

See WNDgetWindowFromPt, WM_LBUTTONxxx.

See also WNDgetCapture, WNDhasCapture, WNDsetCapture

WNDremoveWindowComponents()

void WNDremoveWindowComponents( HWND pHwnd, qulong pComponent )

Removes the specified component(s) from the given window. Removing components may cause the position of other components to be altered, and generates WM_PAINT messages if these components are visible. The removed component windows are destroyed before the function returns.

Example:

// this example removes (destroys) all components of a window with the exception
// of the client component
WNDremoveWindowComponents( myHwnd, WND_WC_MASK - WND_WC_CLIENT );

See also WNDaddWindowComponent, WNDnextWindowComponent, WNDcreateWindow, WNDdestroyWindow, WND_WC_xxx (component ids)

WNDscrollWindow()

void WNDscrollWindow( HWND pHwnd, qdim pXOffset, qdim pYOffset )

Scrolls the contents of a windows client area. The positions of any child windows are offset by the amount specified by the pXOffset and pYOffset parameters (NO WM_WINDOWPOSCHANGED messages are generated). The HWND module preserves as much of the client area as it can, and only invalidates the uncovered area in the window. WM_PAINT messages are eventually sent to the window and all child windows which intersect the scrolled in area.

Example:

See WM_HSCROLL.

See also WM_HSCROLL, WM_VSCROLL

WNDsendMessage()

qlong WNDsendMessage( HWND pHwnd, UINT message, WPARAM wParam, LPARAM lParam)

Sends the given message and parameters to the WndProc function associated with the given window.

Example:

See WM_KEYxxx, WNDenumChildWindows, WNDredrawChildren, WNDmakeLong.

See also WNDpostMessage

WNDsetBorderSpec()

void WNDsetBorderSpec( HWND pHwnd, WNDborderSpec* pBorderSpec, qbool pRedraw )

Changes the border style of the given window. If as a result of this call the client area of the window changes size, all floating children are floated, and all components are sized accordingly. Changes to the border will result in the following messages being send; WM_BORDERCHANGING, WM_WINDOWPOSCHANGING, WM_WINDOWPOSCHANGED and WM_BORDERCHANGED.

Example:

See WNDgetBorderSpec.

See also WNDgetBorderSpec, WM_BORDERCHANGING, WM_WINDOWPOSCHANGING, WM_WINDOWPOSCHANGED, WM_BORDERCHANGED

WNDsetCanSetCursorProc()

WNDcanSetCursorProc WNDsetCanSetCursorProc(WNDcanSetCursorProc pNewProc)

Assigns the address of a procedure to be called when the window receives a WM_SETCURSOR message. WNDcanSetCursorProc is defined as:

typedef qbool (*WNDcanSetCursorProc)();

The supplied proc pointer is stored and the existing proc pointer is returned by this call.

See also WNDsetCurosr()

WNDsetCapture()

void WNDsetCapture( HWND pHwnd, qulong pFlags )

Sets the mouse or key capture to the given window. With the mouse or key capture set, all mouse and key input is directed to that window, regardless of whether the cursor is over that window or the window has the focus. Only one window can have the mouse capture or key capture at any one time.

Example:

See WNDgetWindowFromPt, WM_LBUTTONxxx.

See also WNDgetCapture, WNDhasCapture, WNDreleaseCapture, WND_CAPTURE_xxx

WNDsetCaretPos()

void WNDsetCaretPos( qpoint* pPos )

Moves the system caret to a new position inside the window associated with the caret.

Example:

See WM_FOCUSCHANGED, WNDgetCaretPos.

See also WNDcreateCaret, WNDdestroyCaret, WNDgetCaretPos, WNDhideCaret, WNDshowCaret, WM_FOCUSCHANGED

WNDsetCursor()

qshort WNDsetCursor( qshort pCursor )

Changes the current mouse cursor. This function should only be used to set a cursor during a mouse capture. During some operations it may be required to permanently set the cursor to a watch cursor. To prevent windows changing the cursor when it moves over them, the mouse capture can be set to HWND_MAINWINDOW or any other valid window. This prevents any WM_SETCURSOR messages being generated.

Example:

See WNDgetCursor.

See also WNDgetCursor, WNDgetCursorPos, WNDsetCursorPos, WNDclipCursor, WNDgetWindowCursor, WNDsetWindowCursor

WNDsetCursorPos()

void WNDsetCursorPos( qpoint* pPoint )

Sets the location of the cursors Hotpoint on screen.

Example:

// this example moves the screen cursor to the top left corner of a windows client area.
qrect cRect;
WNDgetClientRect( myHwnd, &cRect );
WNDmapWindowRect( myHwnd, HWND_DESKTOP, &cRect );
qpoint pt( cRect.left, cRect.top );
WNDsetCursorPos( &pt );

See also WNDgetCursorPos, WNDclipCursor, WNDgetCursor, WNDsetCursor, WNDgetWindowCursor, WNDsetWindowCursor

WNDsetFloat()

void WNDsetFloat( HWND pHwnd, qulong pFloat )

Sets the floating property of the given window.

Example:

See WNDgetFloat.

See also WNDgetFloat, WNDcreateWindow, WND_FLOAT_xxx

WNDsetParent()

HWND WNDsetParent( HWND pHwnd, HWND pNewParent )

Changes the parent window of the given child window. Changing the parent changes the window’s position in the Z-order.

Example:

// this example moves the child windows of one window to another,
// maintaining the coordinates local to the parents.
// first disable all redraws for the two parents, we want to redraw
// everything at the end in one go.
WNDsetRedraw( oldParent, qfalse );
WNDsetRedraw( newParent, qfalse );
HWND curChild = WNDgetWindow( oldParent, GW_CHILD );
while ( curChild )
{
  // remember the child’s window rect and make it local to its old parent
  qrect wRect;
  WNDgetWindowRect( curChild, &wRect );
  WNDmapWindowRect( HWND_DESKTOP, oldParent, &wRect );
  // disable redraws for the child while we change the parent and position
  WNDsetRedraw( curChild, qfalse );
  WNDsetParent( curChild, newParent );
  WNDmoveWindow( curChild, wRect.left, wRect.top,
wRect.width(), wRect.height(), qfalse );
  WNDsetRedraw( curChild, qtrue );
  // now get the next child. Always start from top again
  curChild = WNDgetWindow( oldParent, GW_CHILD );
}
// now redraw everything
WNDsetRedraw( oldParent, qtrue );
WNDsetRedraw( newParent, qtrue );
WNDredrawWindow( oldParent, NULL, NULL, WND_RW_PAINT | WND_RW_ERASE );
WNDredrawWindow( newParent, NULL, NULL, WND_RW_PAINT | WND_RW_ERASE | WND_RW_ALLCHILDREN );

See also WNDgetWindow, WNDsetWindowPos

WNDsetProcInst()

void WNDsetProcInst( HWND pHwnd, WNDprocClass* pWndProc )

Changes the WNDprocClass instance which is associated with the given window. The new instance receives all messages for the window from then on.

Example:

See WNDgetProcInst.

See also WNDprocClass, WNDgetProcInst, WNDcreateWindow, WNDaddWindowComponent

WNDsetRedraw()

void WNDsetRedraw( HWND pHwnd, qbool pRedraw )

Enables or disables the painting of the given window. If painting is disabled, any changes made to a window by any of the window management functions do not generate any WM_PAINT messages. In order for changes made to a window while the redraw flag is qfalse to be redrawn, call WNDinvalidateRect, WNDinvalidateRgn or WNDredrawWindow after enabling the redraw for the window.

Example:

See WNDsetParent.

See also WNDinvalidateRect, WNDinvalidateRgn, WNDredrawWindow

WNDsetScrollPos()

void WNDsetScrollPos( HWND pHwnd, qshort pWhich, qdim pPos, qbool pRedraw )

Sets the position of the scrollbar thumb.

Example:

See WM_HSCROLL.

See also WNDgetScrollPos, WNDsetScrollRange, WNDgetScrollRange

WNDsetScrollRange()

void WNDsetScrollRange( HWND pHwnd, qshort pWhich, qdim pMin, qdim pMax, qdim pPage, qbool pRedraw )

Sets the minimum and maximum scroll range and the page size of the windows scroll bar. The page size should be included in the scroll range. Example: A list box contains 50 lines of data. The list box client area can display 10 complete lines. The minimum range should be specified as 1, the maximum range as 50, and the page size should be specified as 10. The HWND module restricts the maximum scroll range automatically to 40.

Example:

See WM_WINDOWPOSCHANGED.

See also WNDsetScrollPos, WNDgetScrollPos, WNDgetScrollRange

WNDsetTimer()

qbool WNDsetTimer( HWND pHwnd, qushort pTimerId, qushort pMillisecondDuration )

Installs a system timer with a duration of the specified number of milliseconds. Every time the specified duration expires, a WM_TIMER message is sent to the WndProc instance of the given window.

Note: Because WM_TIMER messages are only generated if no other messages are on the message queue, the accuracy of the intervals at which they are generated cannot be guaranteed, that is, while Omnis is busy, no WM_TIMER messages are generated.

Warning: On WIN16 timers are a scarce resource, and once they are used up, no more timers can be installed.

Example:

See WM_TIMER.

See also WNDkillTimer, WM_TIMER

WNDsetTimerAttributesOSX()

void WNDsetTimerAttributesOSX(HWND pHwnd, UINT pTimerId, qulong pAttributes)

MacOSX only. Sets additional attributes associated with a timer. Currently accepts the value: HWND_TIMER_RUNS_WHEN_EVENTS_ARE_BLOCKED defined in hwnd.he.

Example: (excerpt from Fisheye component)

if (mTrackingHwnd && !mTimerRunning)
{
  for (qlong eye = 1; eye <= mEyeCount; ++eye)
  {
    if (!GDIequalRect(&mEye[eye - 1].mCurrentRect, mTracking ? &mEye[eye - 1].mTrackingRect : &mEye[eye - 1].mBaseRect))
    {
      mTimerRunning = qtrue;
      WNDsetTimer(mHWnd, FISHEYE_TIMER_ID, FISH_TIMER_INTERVAL);
      WNDsetTimerAttributesOSX(mHWnd, FISHEYE_TIMER_ID, HWND_TIMER_RUNS_WHEN_EVENTS_ARE_BLOCKED);
      break;
    }
  }
  updateWindows(eci, qtrue, mTracking && !mTimerRunning);
}

WNDsetWindowCursor()

void WNDsetWindowCursor( HWND pHwnd, qshort pCursor )

Associates a cursor with the given window. When the mouse moves over the visible client area of that window and the function WNDcheckCursor is called in response to a WM_SETCURSOR message, the cursor is changed to the specified cursor. The default window cursor for all windows is WND_CURS_DEFAULT which sets the screen cursor to WND_CURS_ARROW, if none of the parent windows have a different window cursor.

Example:

See WNDgetWindowCursor.

See also WNDgetWindowCursor, WNDcheckCursor, WM_SETCURSOR

WNDsetWindowLong()

qulong WNDsetWindowLong( HWND pHwnd, qlong pOffset, qulong pValue )

Sets style information for a window. If the style change causes the window to change physical appearance, the window is invalidated appropriately.

Example:

See WNDgetWindowLong.

See also WNDgetWindowLong, WNDcreateWindow, WS_xxx ( styles ), WND_xxx ( extended styles )

WNDsetWindowPos()

qbool WNDsetWindowPos( HWND pHwnd, HWND pHwndInsertAfter, qdim pLeft, qdim pTop, qdim pWidth, qdim pHeight, qulong pFlags)

Changes the size, position, and Z-order of a window.

All coordinates for child windows are client coordinates (relative to the upper-left corner of the parent window’s client area).

Example:

See WNDredrawChildren.

See also WNDsetWindowPosEx, WNDbringWindowToTop, WNDshowWindow, WNDmoveWindow, WNDgetWindowRect, WM_WINDOWPOSCHANGING, WM_WINDOWPOSCHANGED

WNDsetWindowPosEx()

qbool WNDsetWindowPosEx( WNDwindowPosStruct* pWPos )

Same as WNDsetWindowPos, but takes a WNDwindowPosStruct for its parameter which contains all the positioning information.

See also WNDsetWindowPos

WNDshowCaret()

void WNDshowCaret()

Shows the caret if Omnis is the current task, and a window owns the caret.

Example:

See WM_FOCUSCHANGED.

See also WNDcreateCaret, WNDdestroyCaret, WNDgetCaretPos, WNDsetCaretPos, WNDhideCaret, WM_FOCUSCHANGED

WNDshowWindow()

qbool WNDshowWindow( HWND pHwnd, qulong pCmdShow )

Sets the specified window’s visibility state.

Example:

See WNDcreateWindow.

See also WNDsetWindowPos

WNDstartDraw()

HDC WndStartDraw( HWND pHwnd )

Opens and prepares a drawing port for the given window’s client area. This function can be used when drawing is required outside the normal WM_PAINT message.

Note: WNDstartDraw must always be followed by a WNDendDraw, they are not allowed to be nested.

Example:

See WNDredrawChildren, WNDgetWindowFromPt, WNDpaintBorder.

See also WNDendDraw, WNDbeginPaint, WNDendPaint, WM_PAINT, WM_CHILDPAINT

macOS

On macOS, this takes an additional optional parameter.

HDC WNDstartDraw( HWND pHwnd, qrect pClipRect )

Note (macOS): With the macOS 10.14 SDK, it is no longer possible to invoke drawing commands directly to an HWND outside of the normal WM_PAINT message using WNDstartDraw/WNDendDraw.

These commands are now used to tell macOS to redraw the HWND (a Cocoa NSView) as soon as possible and provide a block of drawing instructions to apply to the HDC. This will invoke a normal WM_PAINT on the HWND before the additional drawing instructions are applied. This ensures the HWND draws its normal contents (e.g. background) before the additional drawing instructions are applied to it.

On macOS, the WNDstartDraw and WNDendDraw functions define an Objective-C block object (similar to closures or lambdas in other programming languages). Therefore, this requires that the functions are invoked in the same scope or the compiler will report an error. Variables outside the scope of the block are by default read-only. This means that if the contents of the block attempt to alter the value, the compiler will report an error. To be able to change the value of a variable, it must be marked as a block variable by prefixing with the BLOCKVAR definition (a NOP on non-macOS platforms).

Example: (excerpt from Zoom control)

void tqfZoomIn::drawDesktopSelectRect( qpoint* pPoint )
{
  BLOCKVAR qrect zoom = getZoomRect( pPoint ); // Mark this as a BLOCKVAR as it is passed by reference in the following drawing block.
  HDC desktop = WNDstartDraw( HWND_DESKTOP );
  GDIdrawFocusRect( desktop,&zoom );
  WNDendDraw( HWND_DESKTOP, desktop );
  mLastMousePos = *pPoint;
}

WNDstartDrawEx()

HDC WndStartDrawEx( HWND pHwnd, qrect pClipRect )

Identical to WNDstartDraw on non-macOS platforms.

On macOS this sets up the drawing port in the same way as WNDstartDraw but does not start a drawing block. This allows drawing blocks to be defined in a separate scope.

See also WNDstartDraw, WNDendDraw, WNDbeginPaint, WNDendPaint, WM_PAINT, WM_CHILDPAINT

WNDupdateLayeredWindow()

void WNDupdateLayeredWindow(HWND pHwnd, qrect &pWindowRect, HBITMAP pBitmap)

Updates the specified part of a layered window with the supplied bitmap.

Example: (excerpt from Fisheye control)

void tqfFishEyeObject::createLayeredWindow(EXTCompInfo *eci, HWND &pHwnd, qrect &pRect)
{
  WNDborderStruct border(WND_BORD_NONE);
  qrect bounds(pRect);
  pHwnd = WNDcreateWindow(hwnd(), 0, WND_LAYERED, WNDgetProcInst(hwnd()), &bounds, &border);
  if (pHwnd)
  {
    WNDshowWindow(pHwnd, SW_SHOW);
    ECOinsertObject(eci, pHwnd, (void *) this);
  }
}
//..
if (mTextBitmap)
{
  qrect tr; getTextRect(tr);
  if (!mTextHwnd) createLayeredWindow(eci, mTextHwnd, tr);
  WNDupdateLayeredWindow(mTextHwnd, tr, mTextBitmap);
}

WNDupdateWindow()

void WNDupdateWindow( HWND pHwnd )

Updates the given window by sending a WM_PAINT message to the window if the update region for the window is not empty. If the update region is empty, no message is sent.

Example:

// this example moves a window and immediately causes the invalid areas
// to be updated by calling update window for itself and its parent window.
WNDmoveWindow( myHwnd, 40, 40, 100, 20, qtrue );
WNDupdateWindow( myHwnd );
WNDupdateWindow( WNDgetParent( myHwnd ) );

See also WNDupdateWindowCO, WNDredrawWindow, WNDredrawWindowCO, WM_PAINT

WNDupdateWindowCO()

void WNDupdateWindowCO( HWND pHwnd, qulong pComponents )

Updates the specified components of the given window by calling WNDupdateWindow for each matching component it finds.

Example:

// this example updates all components of a window
WNDupdateWindowCO( myHwnd, WND_WC_MASK );

See also WNDupdateWindow, WNDredrawWindow, WNDredrawWindowCO, WM_PAINT

WNDwindowFromDC() (v3.1)

HWND WNDwindowFromDC( HDC pHdc )

This function returns the HWND associated with the given HDC.

See also WNDbeginPaint, WNDstartDraw
